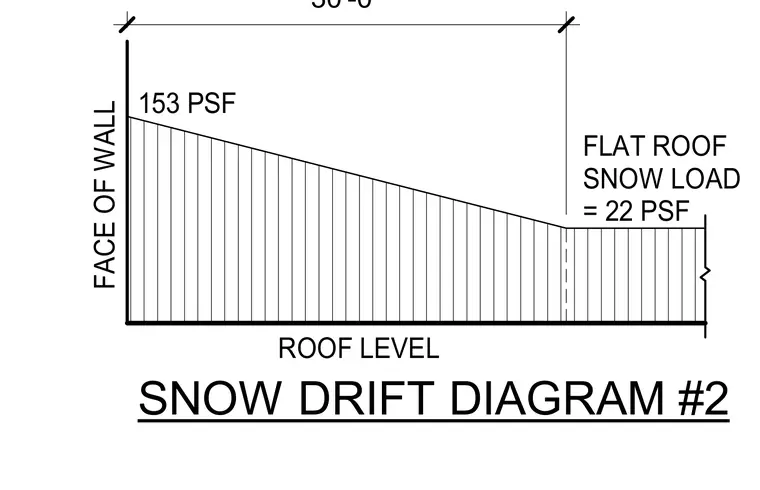

A structural snow drift load diagram showing a peak load of 153 pounds per square foot at the face of the wall tapering over a thirty-foot span to a flat roof snow load of 22 pounds per square foot at the roof level.
ROOF LEVEL FACE OF WALL 153 PSF FLAT ROOF SNOW LOAD = 22 PSF SNOW DRIFT DIAGRAM #2 30'-0"
