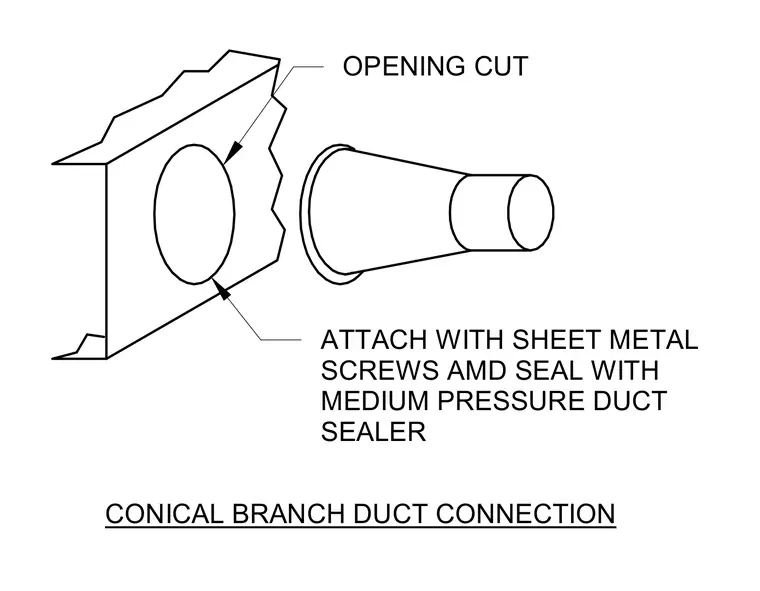

A circular opening is cut into the main duct wall to receive a conical branch duct. The branch is attached with sheet metal screws spaced around the perimeter and sealed with medium pressure duct sealer to prevent air leakage.
OPENING CUT ATTACH WITH SHEET METAL SCREWS AMD SEAL WITH MEDIUM PRESSURE DUCT SEALER CONICAL BRANCH DUCT CONNECTION
