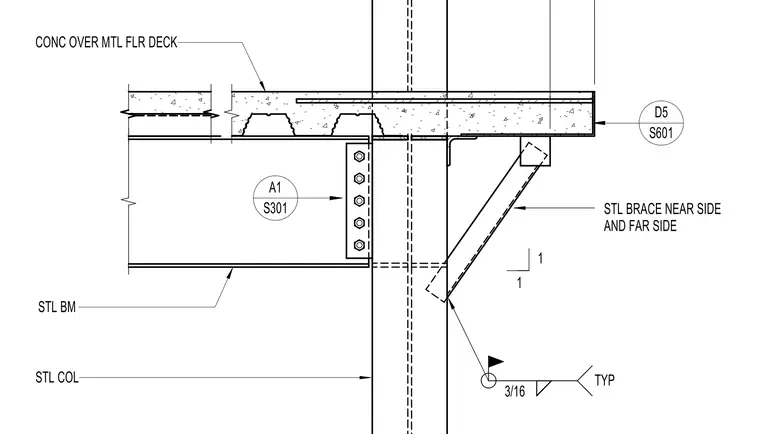

A steel brace is connected to the near side and far side of a steel column supporting a concrete over metal floor deck assembly. The steel beam frames into the column flange using a bolted shear tab connection. Diagonal steel braces are welded to the column with three-sixteenths inch typical fillet welds. The concrete slab on metal deck passes continuously past the column line.
STL COL STL BM CONC OVER MTL FLR DECK STL BRACE NEAR SIDE AND FAR SIDE 1 1 A1 S301 D5 S601 3/16 TYP
