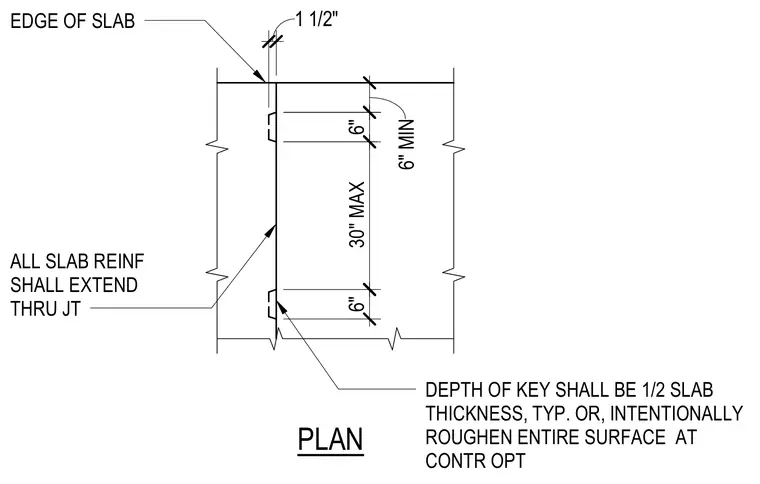

This concrete slab construction joint detail requires all slab reinforcement to extend continuously through the joint. The keyway depth measures one-half of the slab thickness typically, with alternate contractor options allowing the entire contact surface to be intentionally roughened. Keyway dimensions include a 1 1/2 inch offset from the edge of the slab, with keyway lengths spaced at six inches minimum and thirty inches maximum.
6" 30" MAX 6" 6" MIN EDGE OF SLAB ALL SLAB REINF SHALL EXTEND THRU JT DEPTH OF KEY SHALL BE 1/2 SLAB THICKNESS, TYP. OR, INTENTIONALLY ROUGHEN ENTIRE SURFACE AT CONTR OPT PLAN 1 1/2" 30" MAX
