An HSS12x12x1/4 minimum louver header supports a 3-inch thick insulated metal panel secured with number 12 Teks screws. An HSS6x3x1/4 minimum mullion connects to the header using a 4x4x1/4 by 4-inch long angle on each side, fastened with two 1/2-inch diameter through bolts and two powder-actuated fasteners per angle. A 6-inch mullion jamb angle per manufacturer connects to a 6-inch thick louver. A building column sits beyond the assembly, and a note indicates that the connection and framing are delegated design by others.

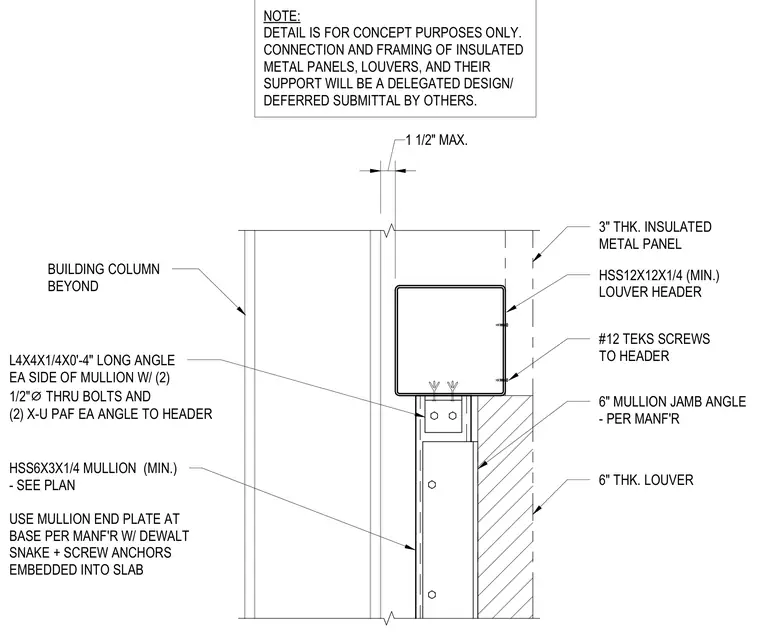

HSS12X12X1/4 (MIN.) LOUVER HEADER NOTE: DETAIL IS FOR CONCEPT PURPOSES ONLY. CONNECTION AND FRAMING OF INSULATED METAL PANELS, LOUVERS, AND THEIR SUPPORT WILL BE A DELEGATED DESIGN/ DEFERRED SUBMITTAL BY OTHERS. 1 1/2" MAX. BUILDING COLUMN BEYOND #12 TEKS SCREWS TO HEADER 3" THK. INSULATED METAL PANEL 6" MULLION JAMB ANGLE - PER MANF'R 6" THK. LOUVER L4X4X1/4X0'-4" LONG ANGLE EA SIDE OF MULLION W/ (2) 1/2" ⌀ THRU BOLTS AND (2) X-U PAF EA ANGLE TO HEADER HSS6X3X1/4 MULLION (MIN.) - SEE PLAN USE MULLION END PLATE AT BASE PER MANF'R W/ DEWALT SNAKE + SCREW ANCHORS EMBEDDED INTO SLAB
