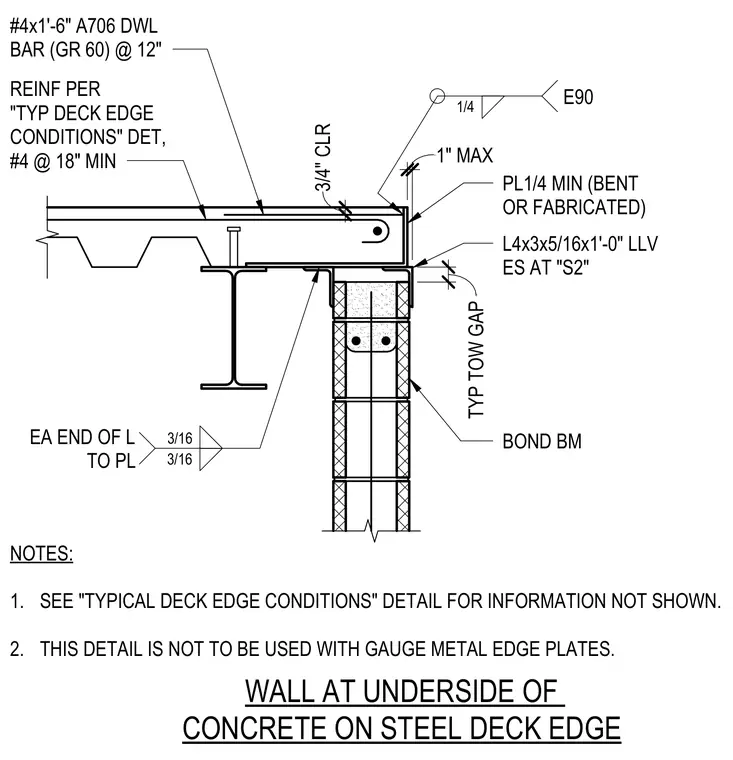

A concrete slab on steel deck bears above a bond beam wall with a typical top-of-wall gap. An L4x3x5/16x1'-0" angle with long leg vertical is welded to a bent or fabricated 1/4-inch minimum plate at the slab edge using a 3/16-inch fillet weld at each end of the angle. A 1/4-inch fillet weld with E90 electrode connects the plate assembly. Reinforcement includes #4 bars at 18 inches minimum and #4 by 1'-6" ASTM A706 dowel bars in Grade 60 at 12 inches with a 3/4-inch clearance.
BOND BM WALL AT UNDERSIDE OF CONCRETE ON STEEL DECK EDGE TYP TOW GAP 1 1/2" 1/2" 1" MAX NOTES: 1. SEE "TYPICAL DECK EDGE CONDITIONS" DETAIL FOR INFORMATION NOT SHOWN. 2. THIS DETAIL IS NOT TO BE USED WITH GAUGE METAL EDGE PLATES. REINF PER "TYP DECK EDGE CONDITIONS" DET, #4 @ 18" MIN #4x1'-6" A706 DWL BAR (GR 60) @ 12" 3/4" CLR PL1/4 MIN (BENT OR FABRICATED) E90 1/4 EA END OF L TO PL 3/16 3/16 L4x3x5/16x1'-0" LLV ES AT "S2"
