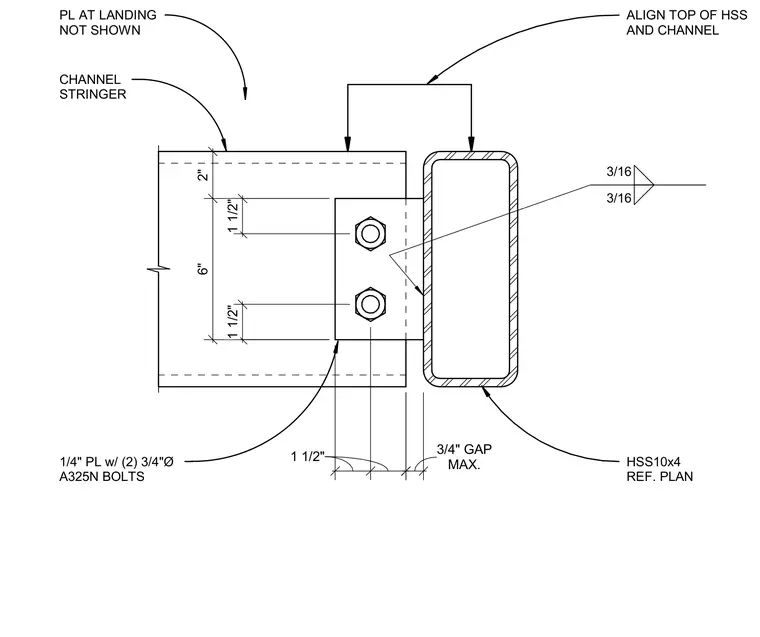

A channel stair stringer connects to a hollow structural section column designated as HSS10x4. A one-quarter-inch plate is welded to the face of the structural tube using three-sixteenth-inch fillet welds. The channel stringer attaches to this connection plate with two three-quarter-inch diameter A325-N bolts. The top of the HSS column and the channel stringer align horizontally. A maximum three-quarter-inch gap is maintained between the stringer and the support.
PL AT LANDING NOT SHOWN CHANNEL STRINGER 1/4" PL w/ (2) 3/4"Ø A325N BOLTS HSS10x4 REF. PLAN ALIGN TOP OF HSS AND CHANNEL 2" 6" 1 1/2" 1 1/2" 3/16 3/16 MAX. 3/4" GAP 1 1/2" 1 1/2"
