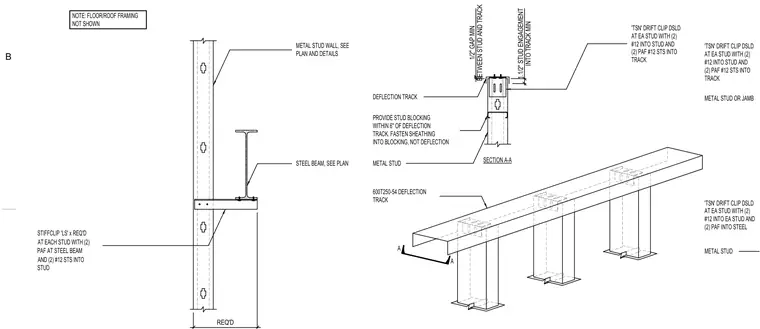

Cold-formed metal stud framing bears against a structural steel beam and deflection track assembly. StiffClip 'LS' clips are attached at each stud using two powder-actuated fasteners into the steel beam and two number twelve self-tapping screws into the stud. A 600T250-54 deflection track accommodates vertical movement, maintaining a one-half inch minimum gap between the stud and track with a one-and-one-half inch minimum stud engagement. Stud blocking is required within six inches of the deflection track to secure sheathing. TSN drift clips are also detailed at each stud or jamb, fastened with two number twelve screws into the stud and two powder-actuated fasteners into the steel.
STEEL BEAM, SEE PLAN NOTE: FLOOR/ROOF FRAMING NOT SHOWN STIFFCLIP 'LS' x REQ'D AT EACH STUD WITH (2) PAF AT STEEL BEAM AND (2) #12 STS INTO STUD METAL STUD WALL, SEE PLAN AND DETAILS REQ'D SECTION A-A METAL STUD 600T250-54 DEFLECTION TRACK A A DEFLECTION TRACK PROVIDE STUD BLOCKING WITHIN 6" OF DEFLECTION TRACK. FASTEN SHEATHING INTO BLOCKING, NOT DEFLECTION METAL STUD OR JAMB 'TSN' DRIFT CLIP DSLD AT EA STUD WITH (2) #12 INTO EA STUD AND (2) PAF INTO STEEL 'TSN' DRIFT CLIP DSLD AT EA STUD WITH (2) #12 INTO STUD AND (2) PAF #12 STS INTO METAL STUD TRACK 'TSN' DRIFT CLIP DSLD AT EA STUD WITH (2) #12 INTO STUD AND (2) PAF #12 STS INTO TRACK 1/2" GAP MIN BETWEEN STUD AND TRACK 1.1/2" STUD ENGAGEMENT INTO TRACK MIN B
