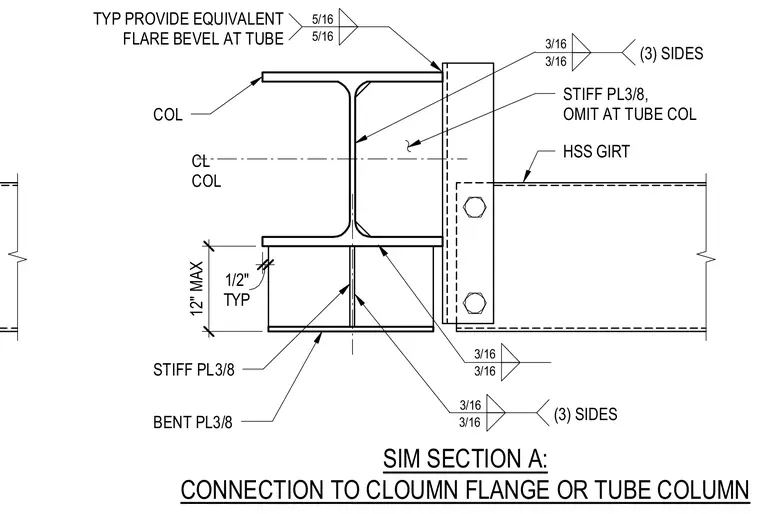

An HSS girt connects to a structural steel column flange or hollow structural section tube column using a three-eighths-inch bent plate welded to the column with five-sixteenth-inch fillet welds. Three-eighths-inch stiffener plates are welded to the column on three sides with three-sixteenth-inch fillet welds, omitted when connecting to a tube column. The HSS girt fastens to the bent plate using three-quarter-inch diameter A307 bolts in short-slotted holes oriented along the longitudinal axis of the girt. Equivalent flare bevel welds are provided at the tube column as required.
SIM SECTION A: CONNECTION TO CLOUMN FLANGE OR TUBE COLUMN BENT PL3/8 CL COL (3) SIDES 3/16 3/16 COL 5/16 5/16 HSS GIRT STIFF PL3/8, OMIT AT TUBE COL STIFF PL3/8 (3) SIDES 3/16 3/16 3/16 3/16 TYP 1/2" THRU-BOLTS SHALL BE 3/4" DIAMETER A307 BOLTS, SHORT-SLOTTED HOLES MAY BE PROVIDED IN THE HSS GIRT WITH SLOTS ORIENTED ALONG THE LONGITUDINAL AXIS OF THE GIRT. 6 7/8" TYP PROVIDE EQUIVALENT FLARE BEVEL AT TUBE 12" MAX
