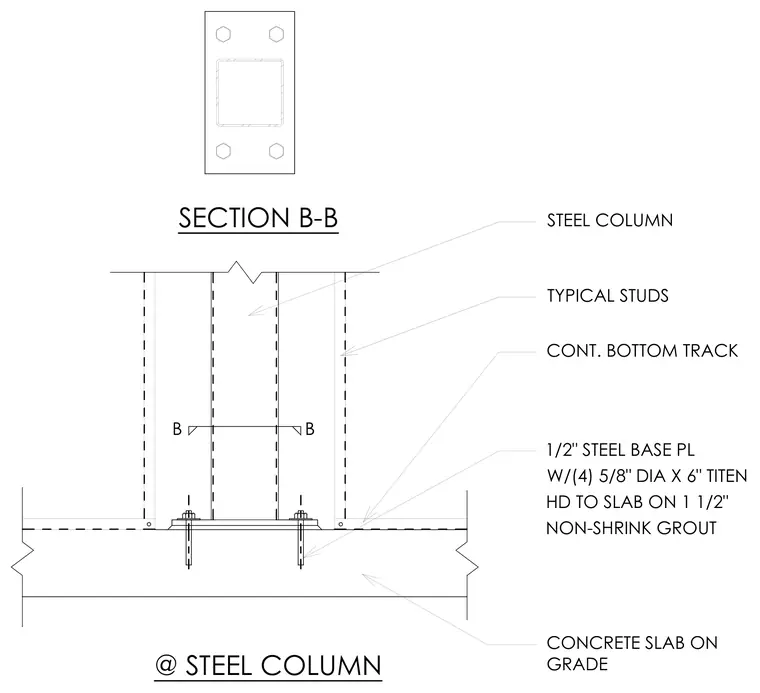

A structural steel column is supported on a half-inch steel base plate secured to a concrete slab on grade. Four five-eighths-inch diameter by six-inch Titen HD concrete screws anchor the base plate through one and one-half inches of non-shrink grout. Typical steel studs and a continuous bottom track frame around the column assembly.
STEEL COLUMN TYPICAL STUDS CONT. BOTTOM TRACK 1/2" STEEL BASE PL W/(4) 5/8" DIA X 6" TITEN HD TO SLAB ON 1 1/2" NON-SHRINK GROUT CONCRETE SLAB ON GRADE B B @ STEEL COLUMN SECTION B-B o O O o o A o
