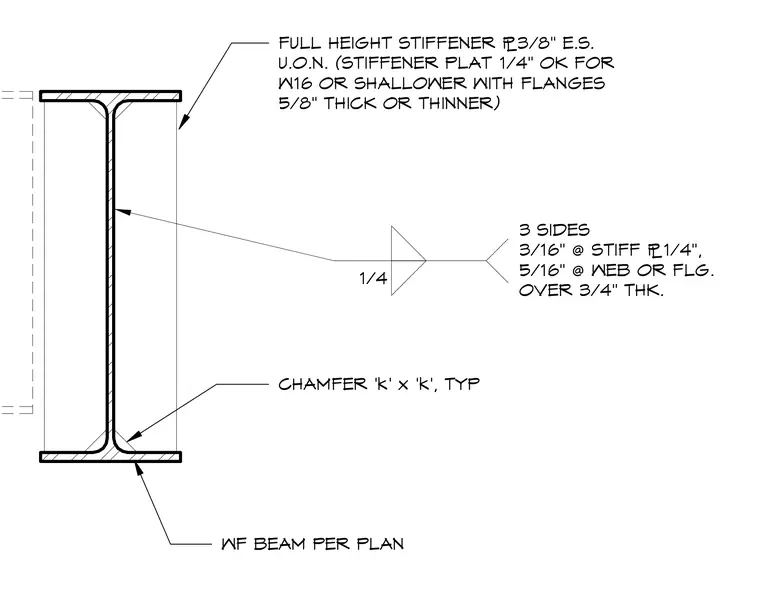

A wide flange beam per plan connects to a full-height three-eighths-inch stiffener plate on each side unless otherwise noted, with a one-quarter-inch stiffener plate acceptable for W16 or shallower sections with flange thicknesses five-eighths-inch or thinner. The stiffener plates feature typical 'k' by 'k' chamfers at the inner corners to clear the beam fillet. Fillet welds connect the assembly with three-sixteenths-inch welds at one-quarter-inch stiffeners and five-sixteenths-inch welds at webs or flanges over three-quarters-inch thick.
FULL HEIGHT STIFFENER ¯3/8" E.S. U.O.N. (STIFFENER PLAT 1/4" OK FOR W16 OR SHALLOWER WITH FLANGES 5/8" THICK OR THINNER) WF BEAM PER PLAN CHAMFER 'k' x 'k', TYP 1/4 3 SIDES 3/16" @ STIFF ¯1/4", 5/16" @ WEB OR FLG. OVER 3/4" THK.
