Structural · S-PWS74

Horizontal Bracing and Beam Connection at Column

Elements

Connections

About this detail

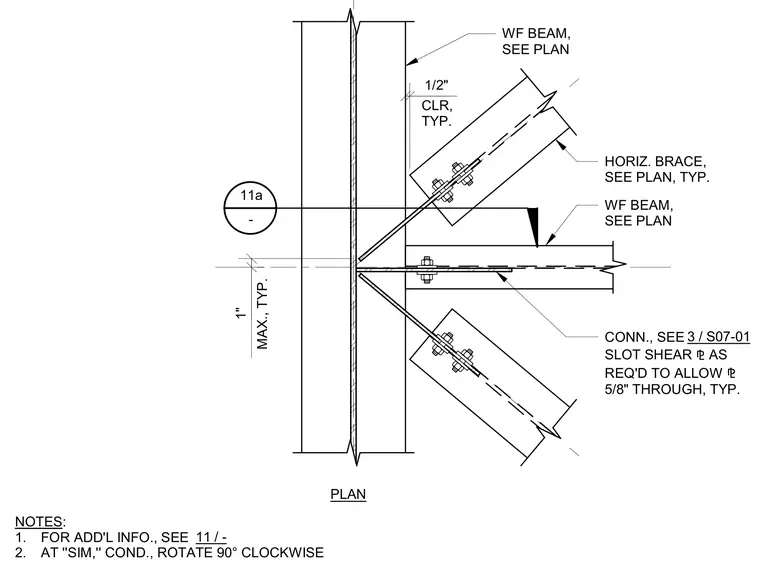

A wide-flange beam and horizontal brace frame into a structural steel column using gusset plates and a slot shear plate sized per plan. The horizontal brace features bolted gusset connections with a typical half-inch clearance. A five-eighth-inch through plate passes through the connection with slotted plates as required. General notes specify additional information on sheet S07-01 and require rotating ninety degrees clockwise at similar conditions.
