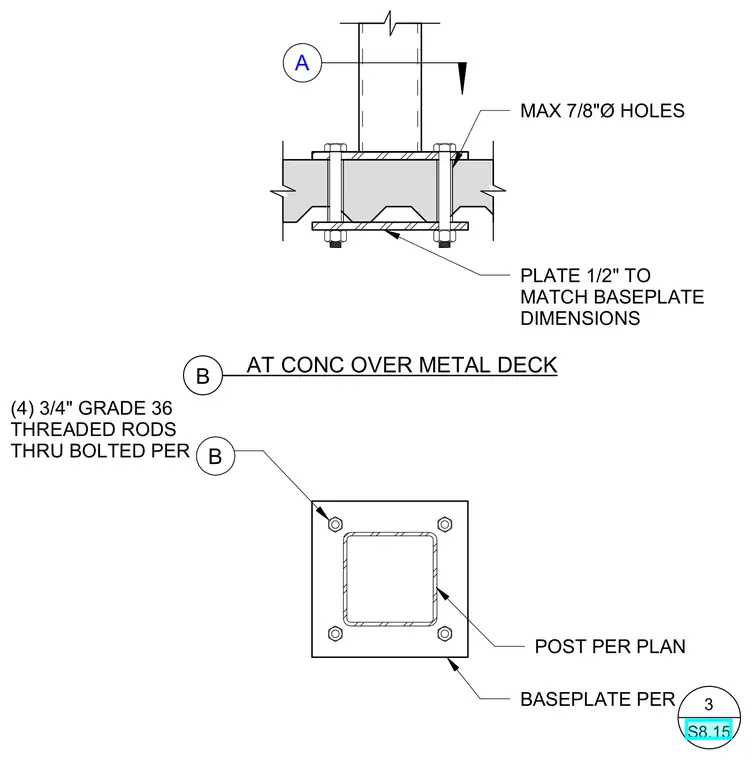

A partition post connects to a concrete slab poured over metal deck using a baseplate secured by four three-quarter-inch Grade 36 threaded rods. The threaded rods pass through the assembly and are secured with a one-half-inch backing plate matching the baseplate dimensions below the deck. Bolt holes in the plates are sized to a maximum seven-eighths-inch diameter.
A (4) 3/4" GRADE 36 THREADED RODS THRU BOLTED PER BASEPLATE PER POST PER PLAN PLATE 1/2" TO MATCH BASEPLATE DIMENSIONS MAX 7/8"Ø HOLES __ __ B AT CONC OVER METAL DECK B 3 S8.15
