Structural · S-PWP46

Channel End Connection

Materials

Concrete Steel Timber / Wood Brick Metal (misc.)

Elements

Walls Curtain Walls Facades / Cladding Roofs Decks Arches Bracing Connections / Plates

Connections

Bracing Connection

About this detail

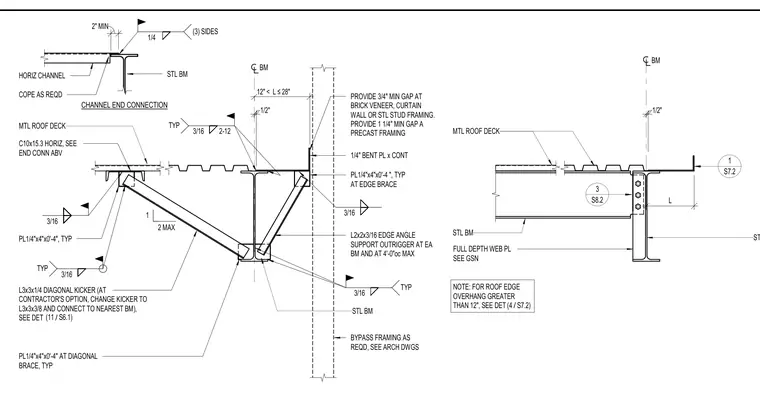

A horizontal C10x15.3 channel connects to the end of a steel beam with a cope as required, welded using a three-sided quarter-inch fillet weld. An edge angle L2x2x3/16 supports outriggers at each beam and at four-foot-zero-inch centers maximum. A L3x3x1/4 diagonal kicker connects back to the steel beam with quarter-inch fillet welds and quarter-inch by four-inch by four-inch plates, with an optional substitution to an L3x3x3/8 angle connected to the nearest beam. A continuous one-quarter-inch bent plate provides edge support at the metal roof deck, maintaining specified minimum clearances to exterior wall systems such as brick veneer, curtain walls, and steel stud framing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
