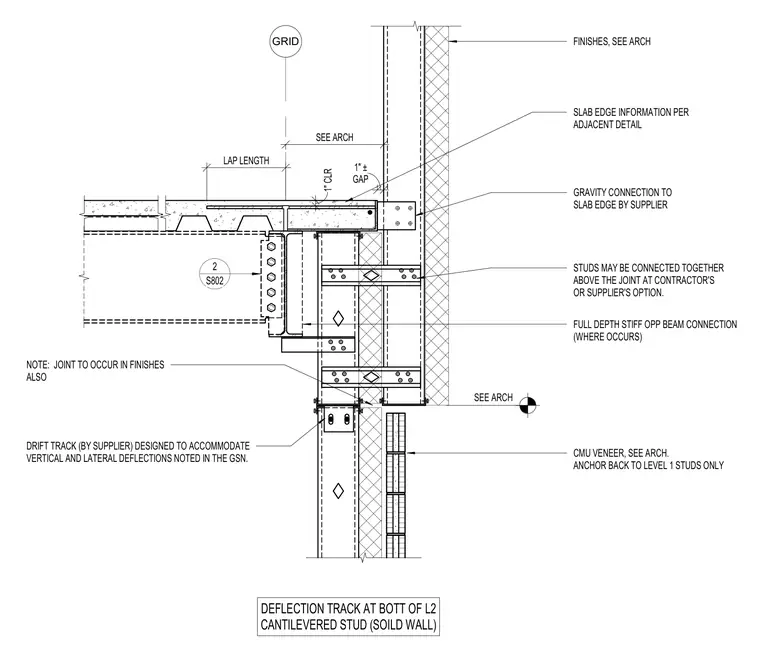

A drift track provided by the supplier is designed to accommodate the vertical and lateral deflections noted in the general structural notes. The assembly interfaces with a structural steel beam supporting a concrete slab on metal deck, maintaining a one-inch plus-or-minus gap at the slab edge. Full-depth stiffeners are provided opposite the beam connection where required. Studs may be connected together above the joint at the contractor's or supplier's option, and a joint occurs in the finishes as noted.
GRID LAP LENGTH 1" CLR SEE ARCH SLAB EDGE INFORMATION PER ADJACENT DETAIL SEE ARCH GRAVITY CONNECTION TO SLAB EDGE BY SUPPLIER CMU VENEER, SEE ARCH. ANCHOR BACK TO LEVEL 1 STUDS ONLY GAP 1" ± DRIFT TRACK (BY SUPPLIER) DESIGNED TO ACCOMMODATE VERTICAL AND LATERAL DEFLECTIONS NOTED IN THE GSN. FINISHES, SEE ARCH FULL DEPTH STIFF OPP BEAM CONNECTION (WHERE OCCURS) 2 S802 DEFLECTION TRACK AT BOTT OF L2 CANTILEVERED STUD (SOILD WALL) NOTE: JOINT TO OCCUR IN FINISHES ALSO STUDS MAY BE CONNECTED TOGETHER ABOVE THE JOINT AT CONTRACTOR'S OR SUPPLIER'S OPTION.
