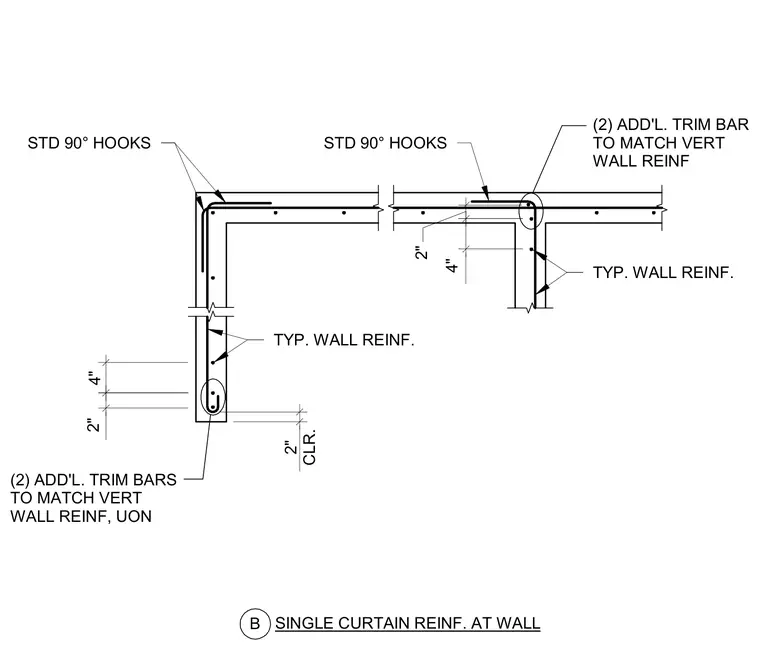

Single curtain reinforcement occurs at a concrete wall intersection and corner. Typical vertical and horizontal wall reinforcement is detailed with standard ninety-degree hooks at corners and intersections. Two additional trim bars matching the vertical wall reinforcement are provided unless noted otherwise. Two-inch clear concrete cover is maintained at the bottom and faces of the wall elements.
2" 2" CLR. 4" 4" 2" (2) ADD'L. TRIM BAR TO MATCH VERT WALL REINF TYP. WALL REINF. (2) ADD'L. TRIM BARS TO MATCH VERT WALL REINF, UON SINGLE CURTAIN REINF. AT WALL B STD 90° HOOKS STD 90° HOOKS TYP. WALL REINF.
