Structural · S-PW9TT

HSS Column Bracing Connection at Wide Flange Beam

Materials

Steel Metal (misc.)

Elements

Decks Arches Bracing Connections / Plates

Connections

Gusset Plate HSS Connection Bracing Connection Welded Connection

About this detail

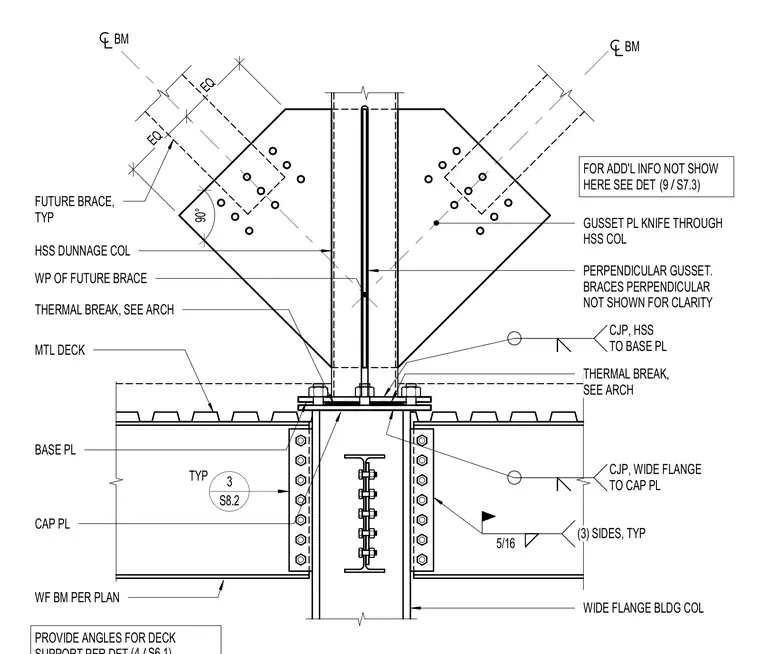

A gusset plate is knife-cut through the hollow structural section dunnage column to connect future diagonal braces set at a ninety degree angle. The hollow structural section column is welded to a base plate with a complete joint penetration weld and attached to a cap plate over the wide flange building column below. Wide flange beams frame into the building column webs and flanges using bolted connections with five-sixteenth inch fillet welds on three sides typically. A thermal break is detailed at the connection interface per the architectural drawings, and metal decking spans across the supporting beams.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
