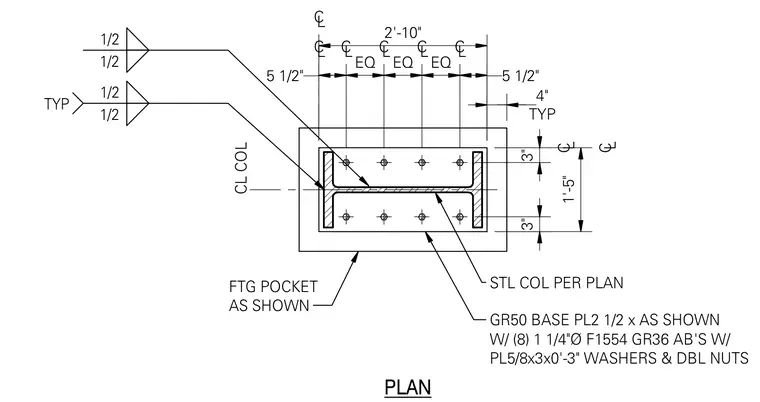

A steel column base plate assembly is anchored into a foundation pocket. The connection consists of a Grade 50 steel base plate measuring two and one-half inches thick, secured with eight one and one-quarter inch diameter ASTM F1554 Grade 36 anchor bolts equipped with five-eighths by three by zero-dash-three inch washers and double nuts. The steel column sits centrally within the foundation pocket per plan, with detailed centerlines and equal spacing dimensions indicated across the anchor bolt layout.
C L C L C L C L C L 5 1/2" EQ EQ EQ 5 1/2" C L 3" 3" C L 1'-5" C L 2'-10" CL COL GR50 BASE PL2 1/2 x AS SHOWN W/ (8) 1 1/4"Ø F1554 GR36 AB'S W/ PL5/8x3x0'-3" WASHERS & DBL NUTS STL COL PER PLAN FTG POCKET AS SHOWN PLAN TYP 4" 1/2 1/2 1/2 1/2 TYP
