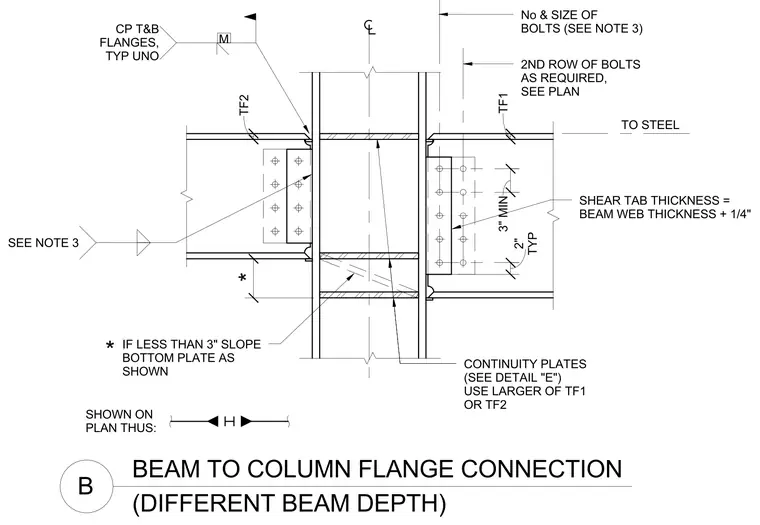

Steel beams of differing depths frame into opposite sides of a column flange with bolted shear tabs and welded top and bottom plates. The shear tab thickness equals the beam web thickness plus one-quarter inch. Continuity plates are installed at the top and bottom flange levels using the larger thickness of either TF1 or TF2, as detailed in detail E. A slope bottom plate is provided when the beam slope is less than three inches, and a second row of bolts is included as required per plan. Field and shop welding requirements are designated along the flange connections, with a three-inch minimum typical spacing for bolt groups.
BEAM TO COLUMN FLANGE CONNECTION (DIFFERENT BEAM DEPTH) B TO STEEL No & SIZE OF BOLTS (SEE NOTE 3) 2ND ROW OF BOLTS AS REQUIRED, SEE PLAN IF LESS THAN 3" SLOPE BOTTOM PLATE AS SHOWN CONTINUITY PLATES (SEE DETAIL "E") USE LARGER OF TF1 OR TF2 SHEAR TAB THICKNESS = BEAM WEB THICKNESS + 1/4" * SHOWN ON PLAN THUS: * 3" MIN TYP 2" TF2 TF1 CP T&B FLANGES, TYP UNO M SEE NOTE 3
