Elevator Rail Support at Steel Beam and LSL Post

Materials

Connections

About this detail

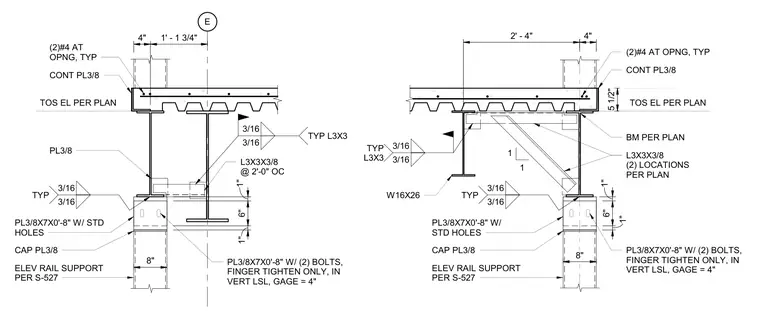

An elevator rail support assembly frames into a steel beam and a vertical laminated strand lumber member. The vertical laminated strand lumber post is capped with a three-eighths-inch plate measuring seven inches by zero feet eight inches and secured with two bolts installed finger tight only with a four-inch gauge. Continuous three-eighths-inch plates and angle members including L3x3x3/8 at two feet on center tie the assembly together with three-sixteenths-inch fillet welds. Steel wide-flange shapes such as W16x26 support the floor system above, detailed with reinforcing bars at openings and designated top of steel elevations per plan. Elevation rail supports are provided per sheet S-527.
