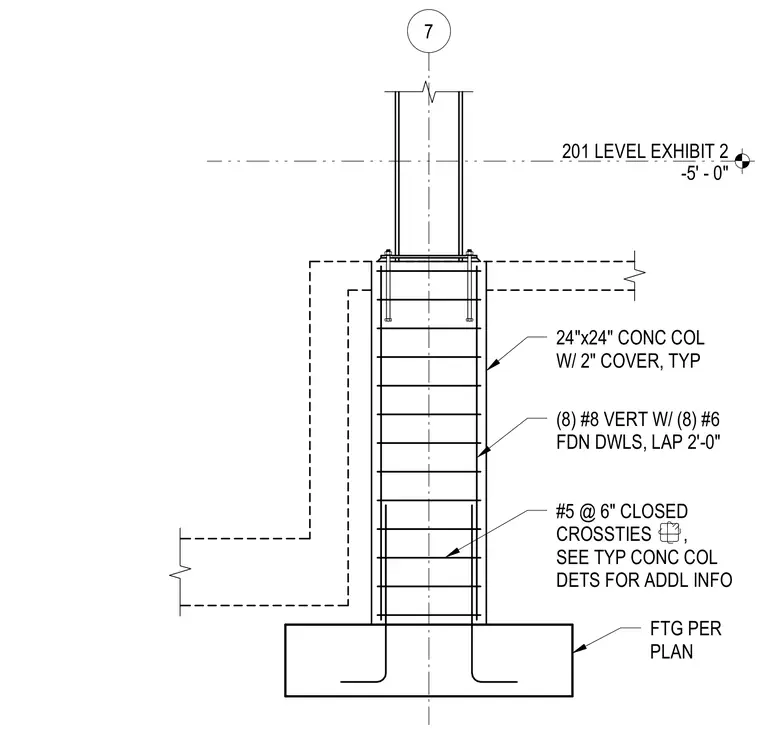

A twenty-four by twenty-four inch concrete column with two inches of typical concrete cover extends up from a footing sized per plan. The column is reinforced with eight number eight vertical bars tied to eight number six foundation dowels with a two-foot lap length. Number five closed crossties are spaced at six inches on center. Additional information refers to typical concrete column details.
201 LEVEL EXHIBIT 2 -5' - 0" 7 24"x24" CONC COL W/ 2" COVER, TYP (8) #8 VERT W/ (8) #6 FDN DWLS, LAP 2'-0" #5 @ 6" CLOSED CROSSTIES , SEE TYP CONC COL DETS FOR ADDL INFO FTG PER PLAN
