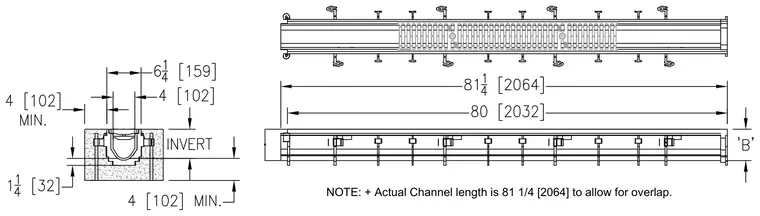

This roll gutter assembly features a channel length of eighty-one and one-quarter inches to allow for overlap with a clear internal channel dimension of eighty inches. The cross-section indicates a minimum four-inch concrete dimension above and below the invert level with specific dimensional offsets for the channel width. Anchor and alignment brackets are spaced along the exterior of the steel channel profile.
NOTE: + Actual Channel length is 81 1/4 [2064] to allow for overlap.
