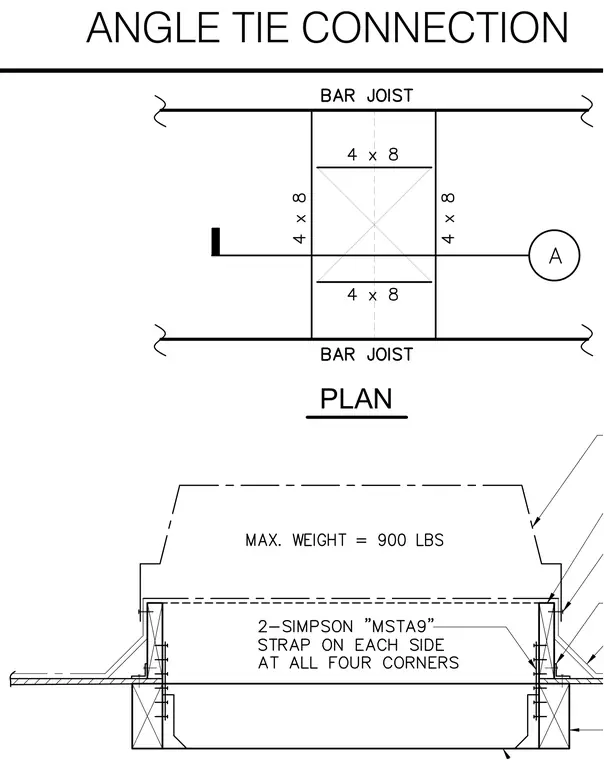

An angle tie connection links bar joists with wood framing members, secured using two Simpson MSTA9 straps on each side at all four corners. The assembly accommodates a maximum weight of 900 pounds. Framing dimensions include 4x8 wood members supporting the layout.
