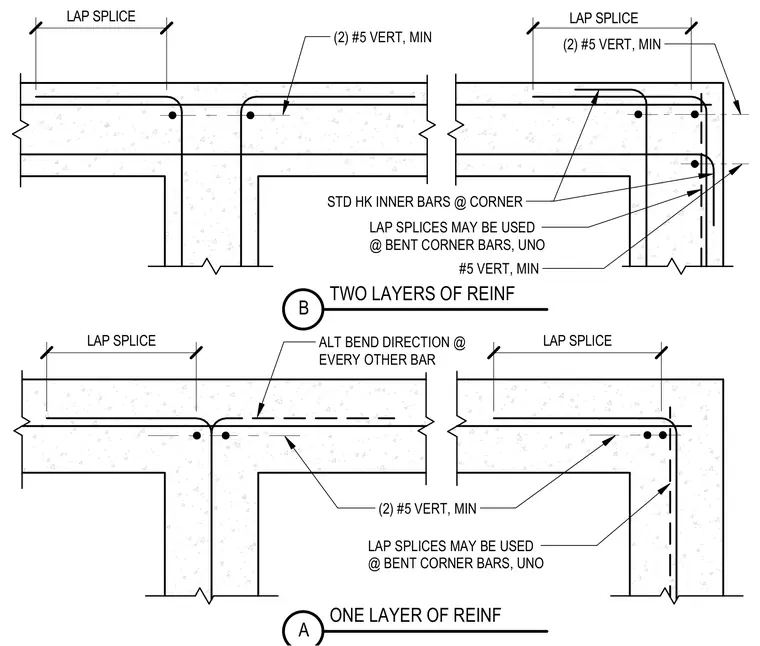

Concrete wall and footing intersections require specific reinforcing bar layouts and lap splices for single and two-layer reinforcement configurations. Vertical reinforcement utilizes a minimum of two number five bars with standard hooks at corners where applicable. Lap splices alternate bend directions at every other bar and may be used at bent corner bars unless noted otherwise.
LAP SPLICE ALT BEND DIRECTION @ EVERY OTHER BAR (2) #5 VERT, MIN LAP SPLICE LAP SPLICES MAY BE USED @ BENT CORNER BARS, UNO LAP SPLICE (2) #5 VERT, MIN STD HK INNER BARS @ CORNER #5 VERT, MIN LAP SPLICE (2) #5 VERT, MIN ONE LAYER OF REINF A TWO LAYERS OF REINF B LAP SPLICES MAY BE USED @ BENT CORNER BARS, UNO
