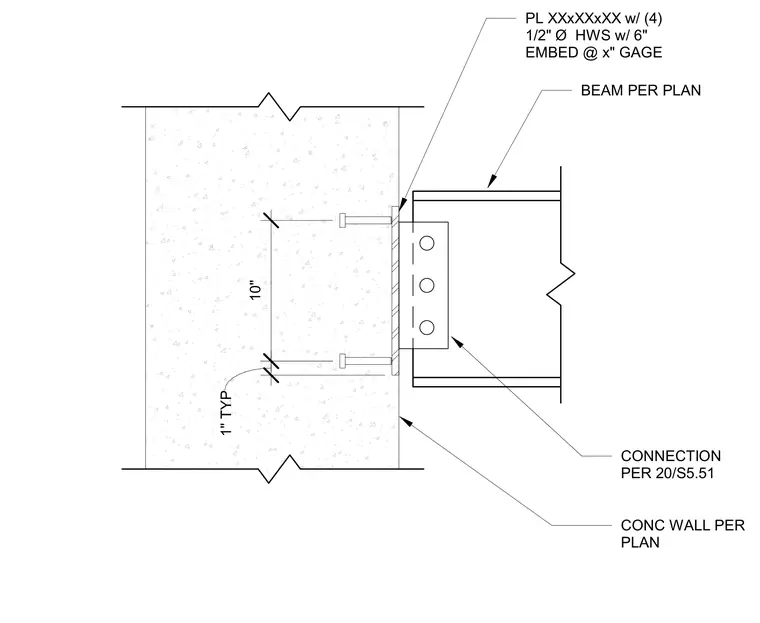

A structural steel beam frames into a concrete wall via a steel plate embedded in the concrete face. The embed plate is secured with four one-half inch diameter headed wall studs with six-inch embedment. The beam connects to the assembly using a shear tab connection detailed elsewhere in the drawing set.
BEAM PER PLAN CONNECTION PER 20/S5.51 CONC WALL PER PLAN PL XXxXXxXX w/ (4) 1/2" Ø HWS w/ 6" EMBED @ x" GAGE 10" 1" TYP
