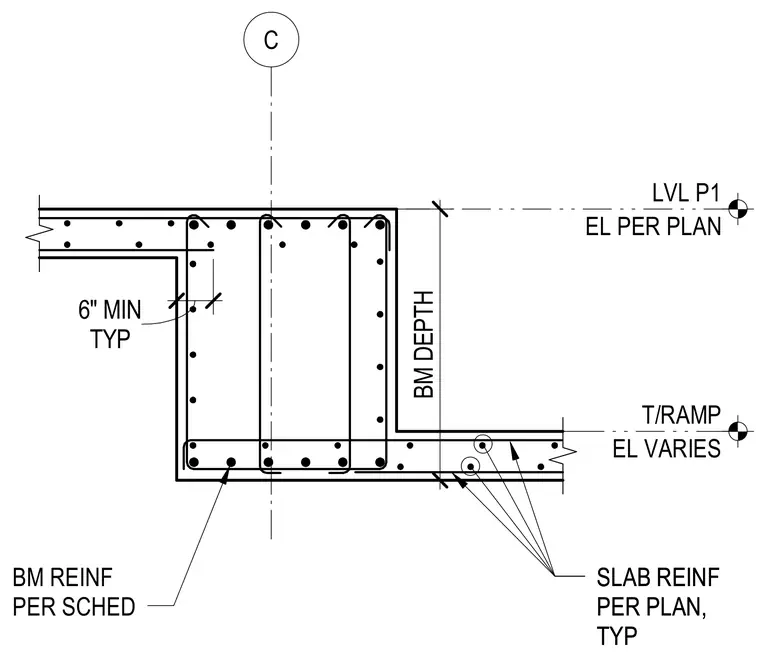

A reinforced concrete beam supports a stepped ramp slab with variable beam depth relative to level P1. The ramp slab features typical reinforcement sized per plan with a six-inch minimum thickness. The concrete beam contains internal reinforcement sized per the structural schedule.
C EL PER PLAN LVL P1 EL VARIES T/RAMP SLAB REINF PER PLAN, TYP TYP 6" MIN SLAB REINF PER PLAN, TYP BM REINF PER SCHED BM DEPTH
