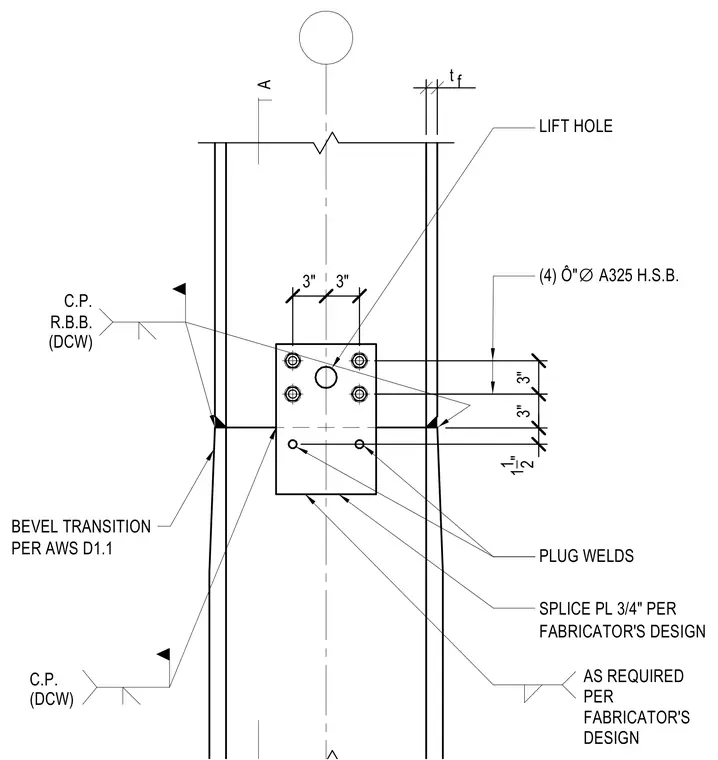

This structural steel detail shows a column bevel transition splice connection utilizing a three-quarter-inch thick splice plate. The connection is secured with four high-strength ASTM A325 bolts and plug welds as required per the fabricator's design. A centered lift hole is provided in the splice plate. Complete joint penetration bevel transitions are detailed per AWS D1.1 standards.
AS REQUIRED PER FABRICATOR'S DESIGN PLUG WELDS LIFT HOLE C.P. BEVEL TRANSITION PER AWS D1.1 R.B.B. C.P. (4) Ô" ∅ A325 H.S.B. SPLICE PL 3/4" PER FABRICATOR'S DESIGN A (DCW) (DCW) f t 3" 3" 3" 3" 11_ 2 "
