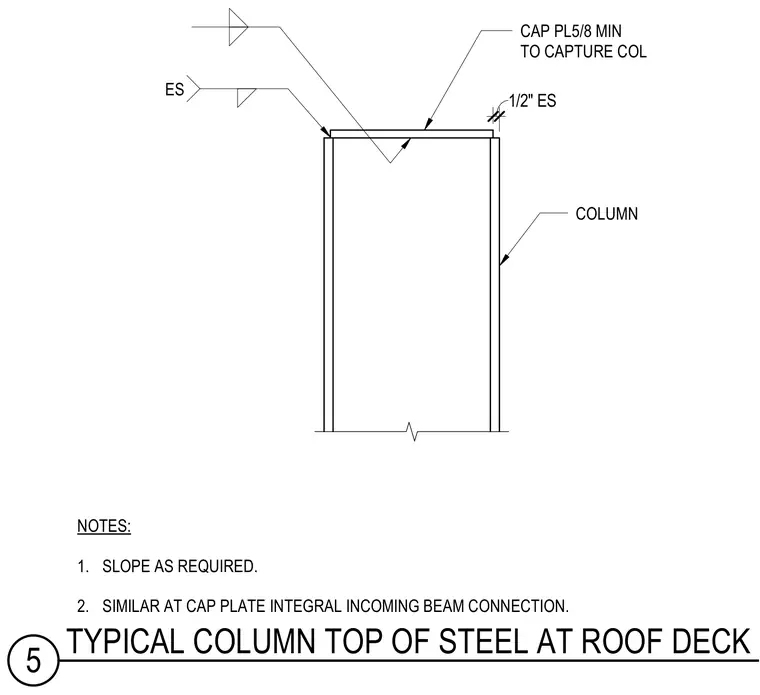

A five-eighths-inch minimum cap plate captures the top of the steel column with a one-half-inch edge space. The assembly accommodates slope as required and serves as a similar condition at cap plates with integral incoming beam connections.
COLUMN CAP PL5/8 MIN TO CAPTURE COL 1/2" ES ES NOTES: 1. SLOPE AS REQUIRED. 2. SIMILAR AT CAP PLATE INTEGRAL INCOMING BEAM CONNECTION. 5 TYPICAL COLUMN TOP OF STEEL AT ROOF DECK
