Steel Beam Connection to Concrete Wall

Materials

Elements

About this detail

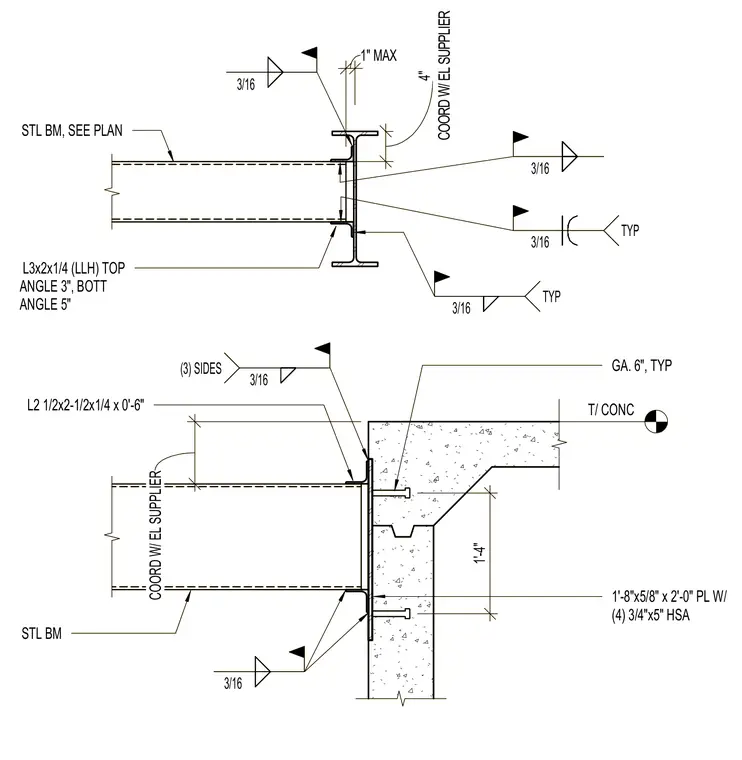

A steel beam connects to a concrete wall using a 1'-8"x5/8"x2'-0" embedded steel plate anchored by four 3/4"x5" HSA anchors. The top and bottom of the steel beam feature L2 1/2x2-1/2x1/4 by 0'-6" angles welded with 3/16-inch fillet welds. Additional top and bottom angles sized L3x2x1/4 are positioned with specific clearances, requiring coordination with the electrical supplier. A 3/16-inch fillet weld secures the assembly on three sides to the embed plate.
