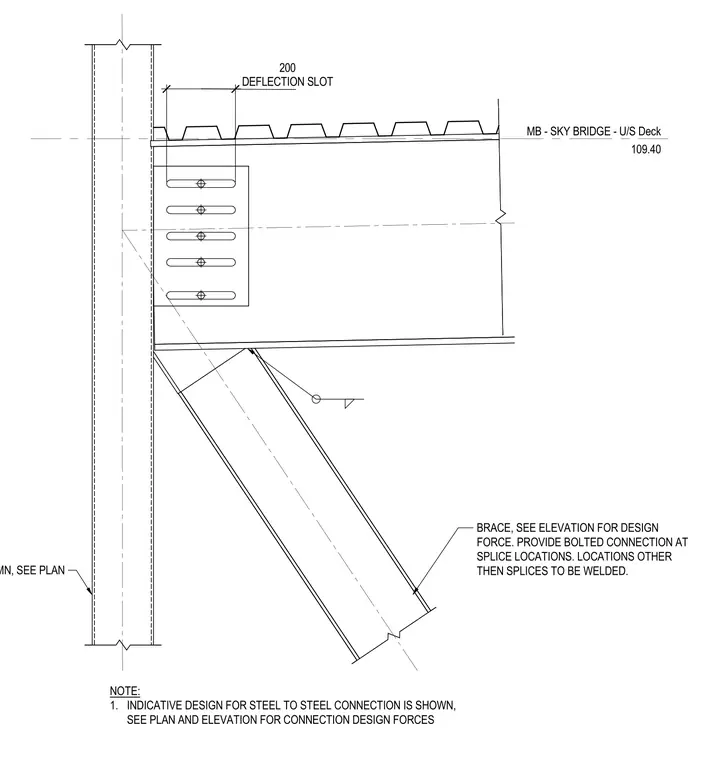

A structural steel brace frames into a structural steel column and beam assembly for a sky bridge. The connection incorporates a slotted plate with four horizontal slot configurations providing a two-hundred millimetre deflection slot at the underside of the deck. The diagonal brace features a welded connection with design forces and splice requirements governed by the structural elevations. An indicative design for the steel-to-steel connection is shown with specific connection design forces detailed on the plan and elevation drawings.
MB - SKY BRIDGE - U/S Deck 109.40 BRACE, SEE ELEVATION FOR DESIGN FORCE. PROVIDE BOLTED CONNECTION AT SPLICE LOCATIONS. LOCATIONS OTHER THEN SPLICES TO BE WELDED. COLUMN, SEE PLAN NOTE: 1. INDICATIVE DESIGN FOR STEEL TO STEEL CONNECTION IS SHOWN, SEE PLAN AND ELEVATION FOR CONNECTION DESIGN FORCES DEFLECTION SLOT 200
