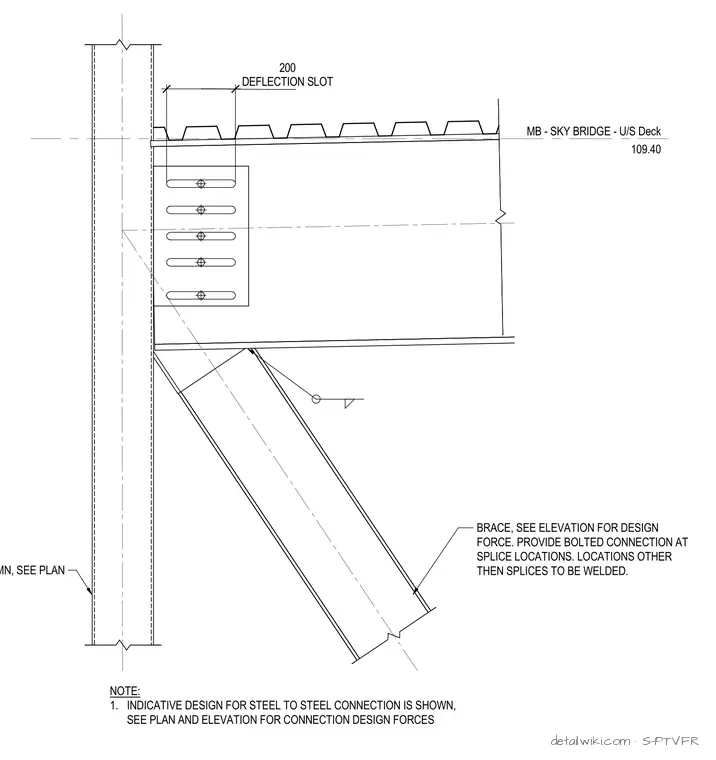

The detail illustrates a structural steel connection where a steel beam connects to a vertical column with a slotted deflection plate mechanism. A diagonal brace member connects near the beam-column intersection, featuring a welded or bolted connection design based on splice locations. Metal decking sits above the beam supporting the sky bridge under-side deck level.
Text on the drawing
MB - SKY BRIDGE - U/S Deck 109.40 BRACE, SEE ELEVATION FOR DESIGN FORCE. PROVIDE BOLTED CONNECTION AT SPLICE LOCATIONS. LOCATIONS OTHER THEN SPLICES TO BE WELDED. COLUMN, SEE PLAN NOTE: 1. INDICATIVE DESIGN FOR STEEL TO STEEL CONNECTION IS SHOWN, SEE PLAN AND ELEVATION FOR CONNECTION DESIGN FORCES DEFLECTION SLOT 200
