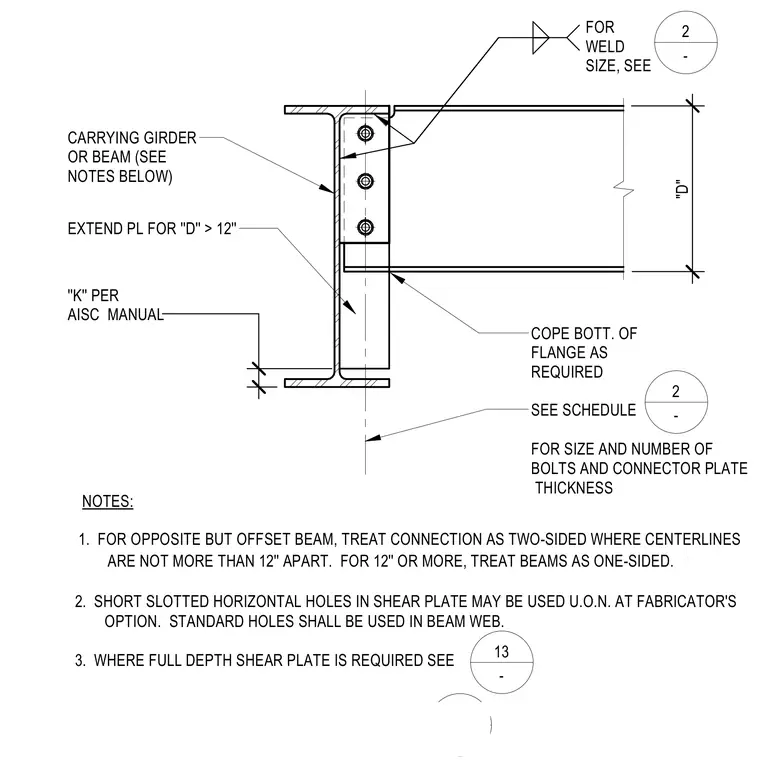

A one-sided framing connection ties a supported steel beam to a carrying girder or beam. The supported beam web is fastened with three bolts to a connector plate welded to the supporting member web. The bottom flange of the supported beam is coped as required with a clearance dimension matching the AISC manual k-distance. Short slotted horizontal holes in the shear plate are permitted at the fabricator's option, while standard holes are required in the beam web. Offset framing conditions require treating the connection as two-sided when centerlines are within twelve inches.
"D" NOTES: CARRYING GIRDER OR BEAM (SEE NOTES BELOW) EXTEND PL FOR ''D'' > 12'' ''K'' PER AISC MANUAL COPE BOTT. OF FLANGE AS REQUIRED SEE SCHEDULE FOR SIZE AND NUMBER OF BOLTS AND CONNECTOR PLATE THICKNESS FOR WELD SIZE, SEE 2. SHORT SLOTTED HORIZONTAL HOLES IN SHEAR PLATE MAY BE USED U.O.N. AT FABRICATOR'S OPTION. STANDARD HOLES SHALL BE USED IN BEAM WEB. 3. WHERE FULL DEPTH SHEAR PLATE IS REQUIRED SEE 4. CONDITION AT SKEWED BEAMS IS SIMILAR, SEE 1. FOR OPPOSITE BUT OFFSET BEAM, TREAT CONNECTION AS TWO-SIDED WHERE CENTERLINES ARE NOT MORE THAN 12'' APART. FOR 12'' OR MORE, TREAT BEAMS AS ONE-SIDED. 2 - 2 - 13 - 9 -
