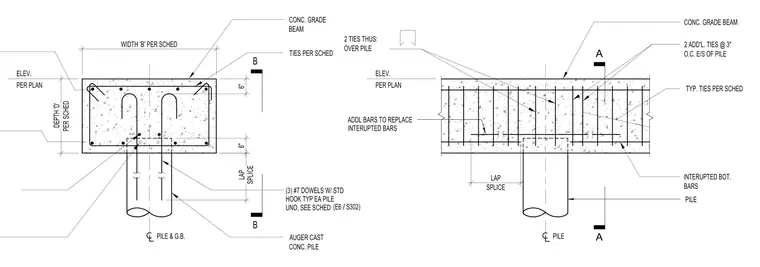

An auger cast concrete pile connects to a concrete grade beam with three number seven dowels featuring standard hooks at each pile unless noted otherwise per the schedule. Additional reinforcement includes two additional ties at three inches on center at each side of the pile, alongside typical ties and interrupted bottom bars replaced per the schedule. The grade beam uses a depth and width per schedule with specific lap splice dimensions and clear cover.
LAP SPLICE DEPTH 'D' PER SCHED WIDTH 'B' PER SCHED LAP SPLICE 6" 6" B B A A PILE & G.B. ELEV. PER PLAN CONC. GRADE BEAM TIES PER SCHED AUGER CAST CONC. PILE PILE 2 TIES THUS: OVER PILE TYP. TIES PER SCHED ELEV. PER PLAN 2 ADD'L. TIES @ 3" O.C. E/S OF PILE CONC. GRADE BEAM INTERUPTED BOT. BARS PILE (3) #7 DOWELS W/ STD HOOK TYP EA PILE UNO, SEE SCHED ADDL BARS TO REPLACE INTERUPTED BARS / (E6 S302)
