Structural framing and connections for a typical skylight blockout feature a hollow structural section member supported by a ledger and reinforced with side plates. A three-eighths-inch by three-inch by zero-foot-six-inch plate is welded to each side of the hollow structural section using specified fillet welds, with side plates welded to the ledger. Additional welds are provided as shown at each hollow structural section, and the hollow structural section is coped at the ledger. Framing components include double two-by-six minimum members, double two-by sub-purlins, roof purlins sized per plan, and a roof drain positioned per architectural drawings.

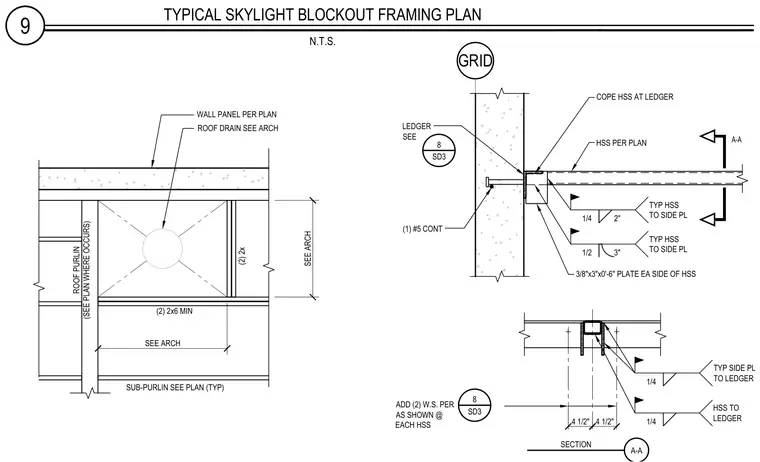

9 TYPICAL SKYLIGHT BLOCKOUT FRAMING PLAN N.T.S. 8 SD3 A-A 4 1/2" 4 1/2" A-A SECTION GRID (2) 2x6 MIN (2) 2x SUB-PURLIN SEE PLAN (TYP) WALL PANEL PER PLAN ROOF DRAIN SEE ARCH ROOF PURLIN (SEE PLAN WHERE OCCURS) SEE ARCH SEE ARCH COPE HSS AT LEDGER HSS PER PLAN LEDGER SEE (1) #5 CONT 1/4 2" TYP HSS TO SIDE PL 1/2 3" TYP HSS TO SIDE PL 3/8"x3"x0'-6" PLATE EA SIDE OF HSS ADD (2) W.S. PER AS SHOWN @ EACH HSS 8 SD3 1/4 TYP SIDE PL TO LEDGER 1/4 HSS TO LEDGER
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
