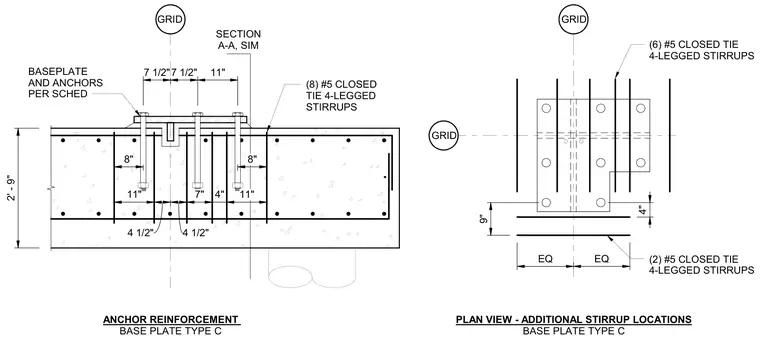

Anchor reinforcement layout for a Base Plate Type C configuration. The assembly consists of embedded anchor rods tied into a concrete foundation member reinforced with multiple sizes of number five closed-tie four-legged stirrups spaced symmetrically about column grid lines. Section A-A and plan views provide specific dimensions and spacing for the stirrup locations surrounding the base plate and anchor assembly.
GRID 11" 7 1/2" 7 1/2" ANCHOR REINFORCEMENT BASE PLATE TYPE C 11" 4" 7" 4 1/2" 4 1/2" 11" 8" 8" (8) #5 CLOSED TIE 4-LEGGED STIRRUPS GRID GRID 9" 4" (6) #5 CLOSED TIE 4-LEGGED STIRRUPS (2) #5 CLOSED TIE 4-LEGGED STIRRUPS PLAN VIEW - ADDITIONAL STIRRUP LOCATIONS BASE PLATE TYPE C SECTION A-A, SIM EQ EQ BASEPLATE AND ANCHORS PER SCHED 2' - 9"
