Structural · S-PTNVY

Sill Track to Concrete Slab and Curb Connection

Materials

Concrete Metal (misc.)

Elements

Decks Expansion / Control Joints Site / Paving Anchors / Embeds

Connections

Bolted Connection Embed Plate

About this detail

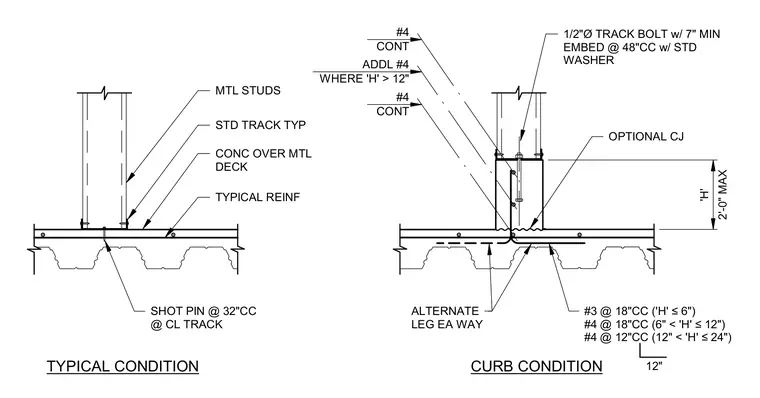

Metal studs bear on a standard track secured to a reinforced concrete topping slab over a metal deck. In the typical condition, the track is fastened along its centerline with shot pins spaced at thirty-two inches on center. In the curb condition, the metal studs bear on an elevated concrete curb up to two feet high, anchored by half-inch diameter track bolts with a seven-inch minimum embedment spaced at forty-eight inches on center with standard washers. The concrete curb includes continuous number four reinforcing bars, additional number four bars when the curb height exceeds twelve inches, and optional control joints. The supporting concrete slab contains typical reinforcement consisting of number three bars at eighteen inches on center for heights up to six inches, number four bars at eighteen inches on center for heights between six and twelve inches, and number four bars at twelve inches on center for heights between twelve and twenty-four inches, with alternate legs each way.
