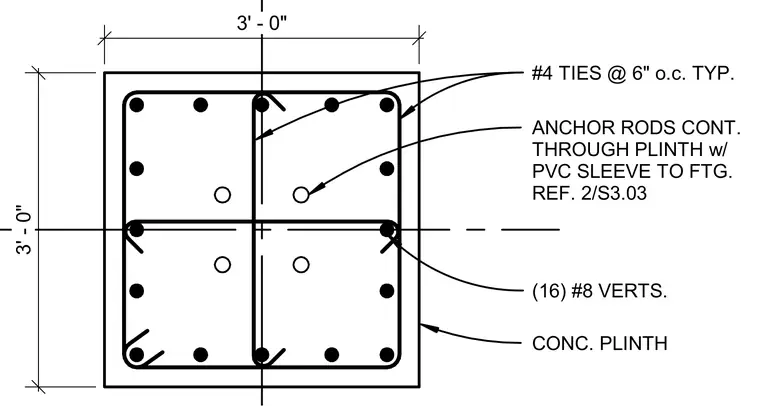

A three-foot by three-foot concrete plinth is reinforced with sixteen number eight vertical bars and number four ties spaced at six inches on center typically. Anchor rods continue through the plinth inside polyvinyl chloride sleeves down to the footing as referenced on structural sheet S3.03.
3' - 0" 3' - 0" ANCHOR RODS CONT. THROUGH PLINTH w/ PVC SLEEVE TO FTG. REF. 2/S3.03 CONC. PLINTH #4 TIES @ 6" o.c. TYP. (16) #8 VERTS.
