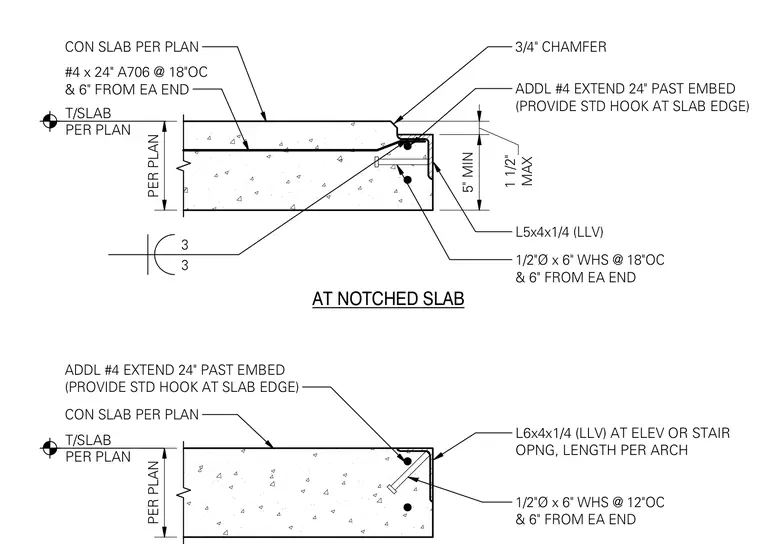

Embed angles anchor to concrete slab edges at stair and elevator openings. The assembly features an L5x4x1/4 angle with 1/2-inch diameter by 6-inch welded headed studs spaced at 18 inches on center and 6 inches from each end at the notched slab condition, alongside an L6x4x1/4 angle with 1/2-inch diameter by 6-inch welded headed studs spaced at 12 inches on center at general elevator or stair openings. Additional number 4 reinforcing bars extend 24 inches past the embed with standard hooks provided at the slab edge, complemented by number 4 bars at 24 inches long in A706 grade spaced at 18 inches on center plus 6 inches from each end. A 3/4-inch chamfer is formed at the top outside corner of the notched slab condition.
MAX 1 1/2" 5" MIN 3/4" CHAMFER ADDL #4 EXTEND 24" PAST EMBED (PROVIDE STD HOOK AT SLAB EDGE) CON SLAB PER PLAN L5x4x1/4 (LLV) 1/2"Ø x 6" WHS @ 18"OC & 6" FROM EA END AT NOTCHED SLAB L6x4x1/4 (LLV) AT ELEV OR STAIR OPNG, LENGTH PER ARCH CON SLAB PER PLAN ADDL #4 EXTEND 24" PAST EMBED (PROVIDE STD HOOK AT SLAB EDGE) 1/2"Ø x 6" WHS @ 12"OC & 6" FROM EA END T/SLAB PER PLAN T/SLAB PER PLAN PER PLAN PER PLAN #4 x 24" A706 @ 18"OC & 6" FROM EA END 3 3
