Structural · S-PTD37

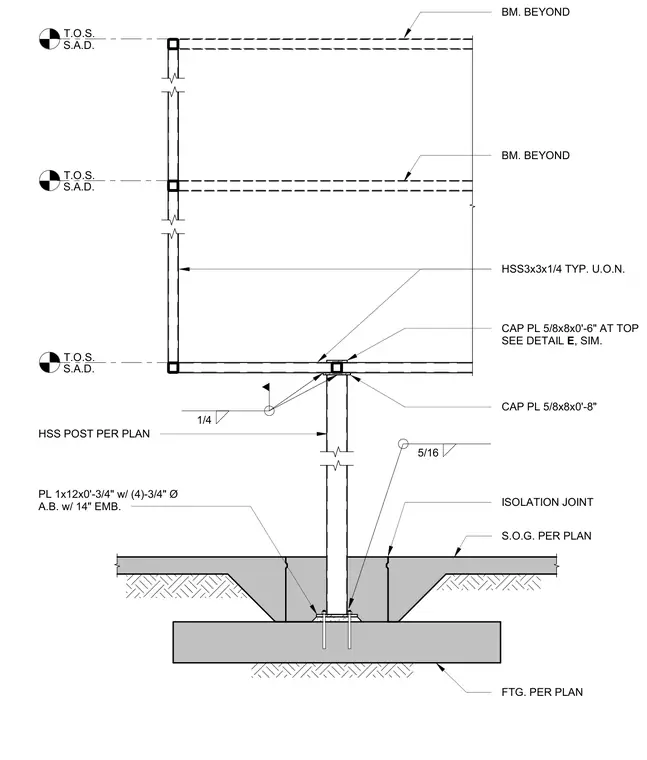

Structural Section at Media Cube HSS Post

Materials

Steel

Elements

Columns

Connections

HSS Connection

About this detail

This structural section details a hollow structural section post anchored to a concrete footing and slab on grade, supporting a multi-tier hollow structural section framing assembly above. The post consists of a hollow structural section sized per plan welded to a 1 inch by 12 inch by 0 foot 3 and three-quarter inch base plate, secured with four three-quarter inch diameter anchor bolts embedded 14 inches into the concrete. A 5/16 inch fillet weld secures the base connection at the slab on grade, which is separated from the foundation by an isolation joint. At the top of the post, a 5/8 inch by 8 inch by 0 foot 8 inch cap plate is welded with a quarter-inch fillet weld, matching a similar 5/8 inch by 8 inch by 0 foot 6 inch cap plate at the top level referencing detail E. The upper framework utilizes hollow structural sections measuring 3 inches by 3 inches by 1/4 inch typical unless otherwise noted, with additional beams shown beyond.
