Structural · S-PT6SJ

Typical Concrete Pad On Deck And Conc. Fill

Materials

Elements

About this detail

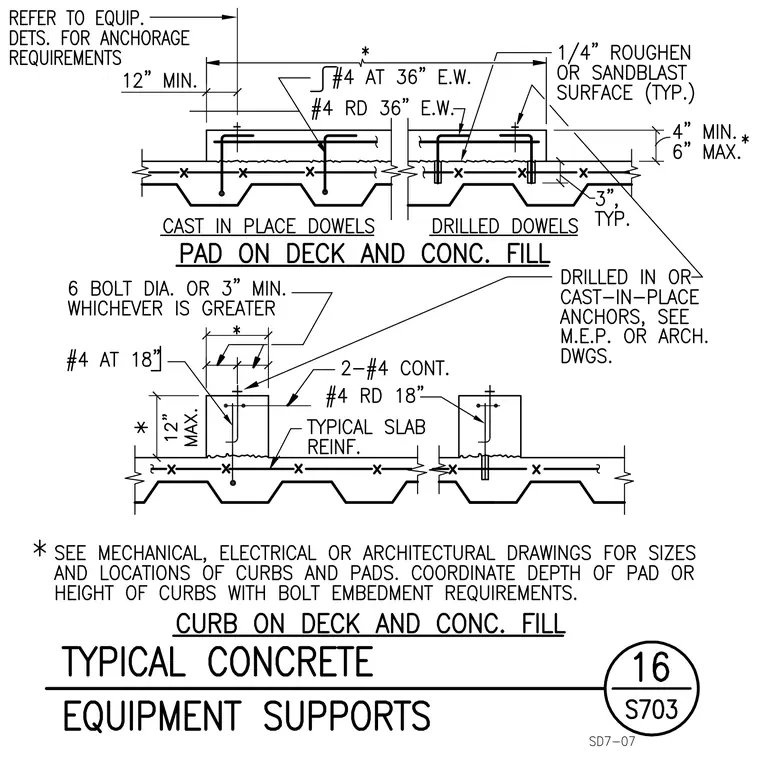

Typical concrete equipment supports on a metal deck with concrete fill, featuring both pad on deck and curb on deck configurations. The pad assembly includes a four-inch minimum to six-inch maximum concrete thickness over metal deck, reinforced with number four bars at thirty-six inches each way or number four round bars at thirty-six inches each way, utilizing either cast-in-place dowels or drilled dowels with a one-quarter inch roughened or sandblasted surface typical. Edge distances require twelve inches minimum with equipment anchorage requirements coordinated per mechanical, electrical, or architectural drawings. The curb assembly sits atop the slab and concrete fill, measuring twelve inches maximum in height with a four bar at eighteen inches spacing, two continuous number four bars, and number four round bars at eighteen inches, with typical slab reinforcement and drilled-in or cast-in-place anchors. Edge and spacing criteria dictate six bolt diameters or three inches minimum, whichever is greater.
