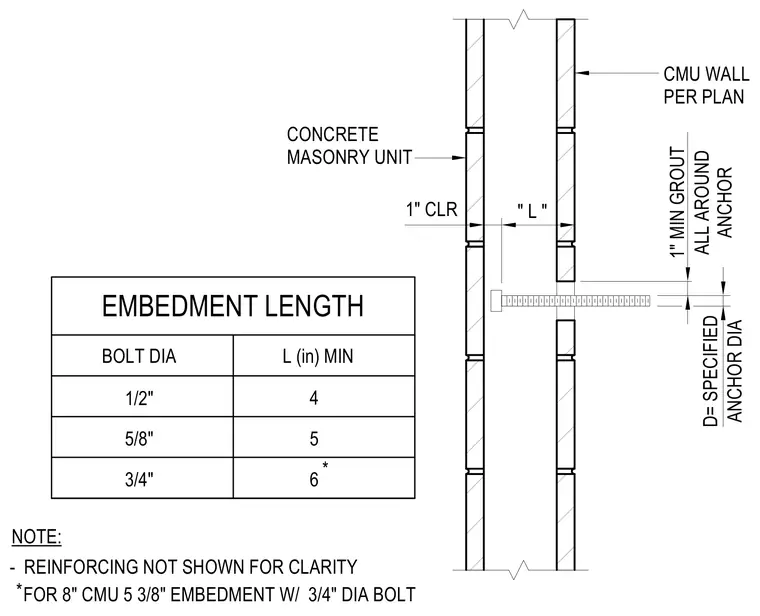

An anchor bolt is embedded horizontally within a concrete masonry unit wall with one inch of minimum grout coverage all around the anchor diameter. The embedment length varies by bolt diameter, requiring a four inch minimum for a one-half inch diameter bolt, a five inch minimum for a five-eighths inch diameter bolt, and a six inch minimum for a three-quarter inch diameter bolt, with a specific note requiring five and three-eighths inches of embedment for an eight-inch concrete masonry unit with a three-quarter inch diameter bolt. Reinforcing is omitted for clarity.
" L " 1" CLR D= SPECIFIED ANCHOR DIA ALL AROUND ANCHOR 1" MIN GROUT NOTE: FOR 8" CMU 5 3/8" EMBEDMENT W/ 3/4" DIA BOLT - REINFORCING NOT SHOWN FOR CLARITY CONCRETE MASONRY UNIT CMU WALL PER PLAN * EMBEDMENT LENGTH BOLT DIA L (in) MIN 1/2" 5/8" 3/4" 4 5 6 *
