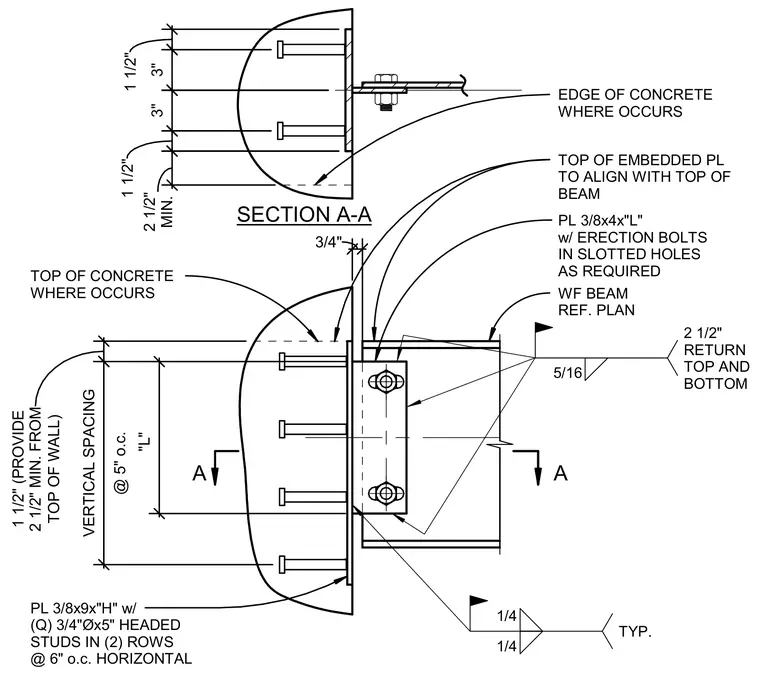

A wide flange beam connects to a concrete wall via a 3/8-inch by 9-inch by H-length embed plate anchored by headed studs arranged in two rows spaced at 6 inches on center horizontally and 5 inches on center vertically. A 3/8-inch by 4-inch by L-length plate is welded to the embed plate and connected to the beam web with erection bolts in slotted holes as required. The connection uses a 5/16-inch fillet weld with 2-1/2-inch returns at the top and bottom, along with 1/4-inch typical fillet welds. The top of the embedded plate aligns with the top of the beam, maintaining a 2-1/2-inch minimum distance from the top of the wall.
A A SECTION A-A 3" 3" 1 1/2" MIN. 2 1/2" TOP OF CONCRETE WHERE OCCURS EDGE OF CONCRETE WHERE OCCURS PL 3/8x4x"L" w/ ERECTION BOLTS IN SLOTTED HOLES AS REQUIRED WF BEAM REF. PLAN 3/4" 5/16 2 1/2" RETURN TOP AND BOTTOM 1/4 1/4 TYP. PL 3/8x9x"H" w/ (Q) 3/4"Øx5" HEADED STUDS IN (2) ROWS @ 6" o.c. HORIZONTAL TOP OF WALL) 1 1/2" (PROVIDE 2 1/2" MIN. FROM @ 5" o.c. VERTICAL SPACING 1 1/2" "L" TOP OF EMBEDDED PL TO ALIGN WITH TOP OF BEAM
