Wood Shear Wall Holdown Anchor at Concrete Foundation

Materials

Concrete Steel Timber / Wood Masonry / CMU Metal (misc.)

Elements

Columns Walls Shear Walls Floors / Slabs Foundations / Footings Site / Paving Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage Bolted Connection Embed Plate Timber / Mass-Timber Connection

About this detail

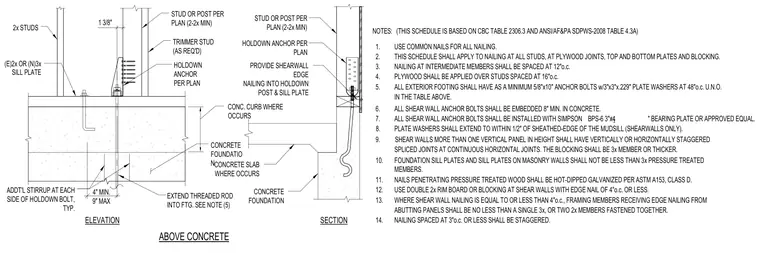

A holdown anchor connection for a wood-framed shear wall bears on a concrete foundation or stem wall. The assembly includes existing or new two-by sill plates, double studs or posts, trimmer studs as required, and a proprietary holdown anchor secured with an extended threaded rod anchored into the concrete footing. Additional stirrups are provided at each side of the holdown bolt typically, with threaded rods extending per project notes. Shearwall edge nailing is driven into the holdown post and sill plate, complemented by a concrete curb and slab where occurring.
