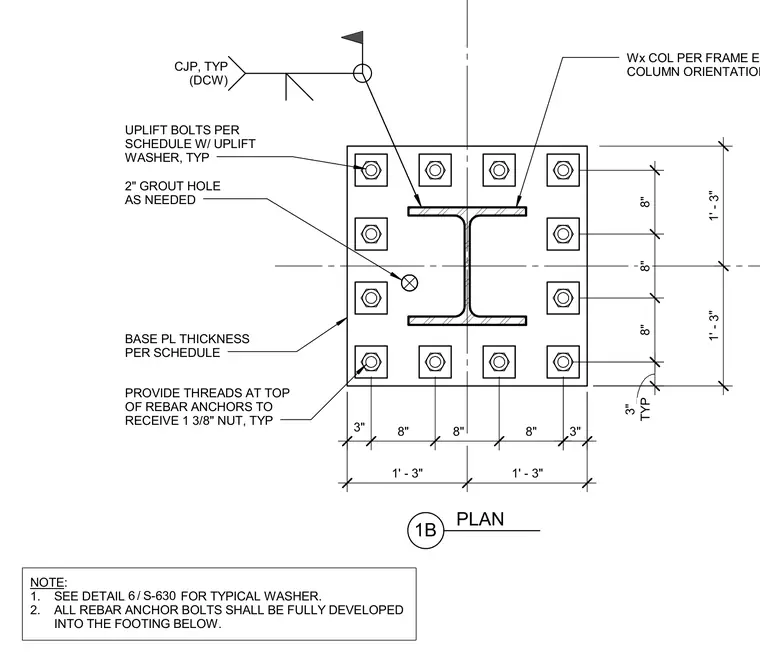

A buckling-restrained braced frame base plate connection for a wide-flange column sized per the frame elevation and orientation plan is provided. The square base plate features a specified thickness per schedule and a centrally located two-inch grout hole as needed. Twelve anchor bolts equipped with uplift washers are spaced at eight-inch increments around the perimeter, featuring one-and-three-eighths-inch nuts on threaded rebar anchors fully developed into the footing below. Complete joint penetration welds connect the column flanges to the base plate.
PLAN 1B 1' - 3" 1' - 3" 1' - 3" 1' - 3" TYP 3" 3" 8" 8" 8" Wx COL PER FRAME ELEVATION, COLUMN ORIENTATION PER PLAN CJP, TYP (DCW) UPLIFT BOLTS PER SCHEDULE W/ UPLIFT WASHER, TYP BASE PL THICKNESS PER SCHEDULE 3" 2" GROUT HOLE AS NEEDED PROVIDE THREADS AT TOP OF REBAR ANCHORS TO RECEIVE 1 3/8" NUT, TYP 8" 8" 8" NOTE: 1. SEE DETAIL FOR TYPICAL WASHER. 2. ALL REBAR ANCHOR BOLTS SHALL BE FULLY DEVELOPED INTO THE FOOTING BELOW. / 6 S-630
