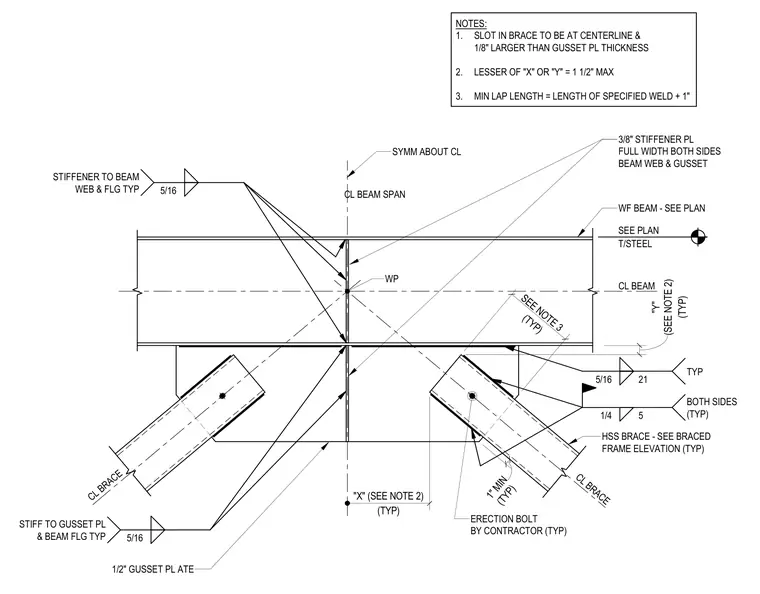

A structural steel braced frame connection features a wide-flange beam intersecting hollow structural section braces through a one-half inch gusset plate. Three-eighths inch stiffener plates span full width on both sides of the beam web and gusset plate, welded with five-sixteenths inch fillet welds typical. The slotted braces include an erection bolt installed by the contractor, with a one-inch minimum lap length and welds sized per drawing notes. The slot in the brace is centered and one-eighth inch larger than the gusset plate thickness, with specific maximum dimensions for the X and Y offsets.
NOTES: 1. SLOT IN BRACE TO BE AT CENTERLINE & 1/8" LARGER THAN GUSSET PL THICKNESS 2. LESSER OF "X" OR "Y" = 1 1/2" MAX 3. MIN LAP LENGTH = LENGTH OF SPECIFIED WELD + 1" T/STEEL SEE PLAN WP HSS BRACE - SEE BRACED FRAME ELEVATION (TYP) 1/4 5 BOTH SIDES (TYP) CL BEAM 3/8" STIFFENER PL FULL WIDTH BOTH SIDES BEAM WEB & GUSSET CL BRACE CL BRACE 5/16 STIFF TO GUSSET PL & BEAM FLG TYP 5/16 STIFFENER TO BEAM WEB & FLG TYP WF BEAM - SEE PLAN CL BEAM SPAN ERECTION BOLT BY CONTRACTOR (TYP) 5/16 21 TYP 1/2" GUSSET PL ATE SYMM ABOUT CL (TYP) "Y" (SEE NOTE 2) (TYP) "X" (SEE NOTE 2) (TYP) SEE NOTE 3 (TYP) 1" MIN
