Structural · S-PSP43

Typical Composite Beam and Floor Slab Construction Details

Materials

Concrete Steel Metal (misc.)Composite

Elements

Columns Beams Floors / Slabs Decks Expansion / Control Joints

Connections

Shear Stud / Composite

About this detail

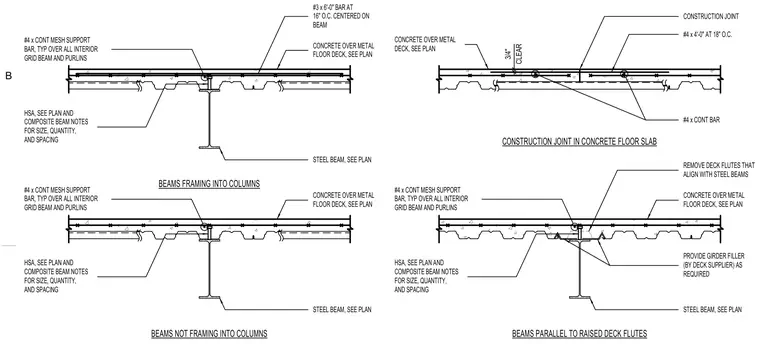

These details illustrate composite floor deck and steel beam conditions alongside a concrete floor slab construction joint. The assemblies feature a concrete slab over a metal floor deck supported by structural steel beams, with shear anchor studs sized per plan. Additional reinforcement includes continuous mesh support bars over interior grid beams and purlins, transverse reinforcement bars centered on beams, and continuous bars at construction joints. Deck flutes aligning with steel beams are specified for removal where required, with girder fillers supplied as needed.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
