A structural steel beam-to-column web connection accommodates beams with differing depths on opposite sides of the column. A welded shear tab is utilized whose thickness equals the beam web thickness plus one-fourth inch. Continuity plates are provided at the top and bottom flanges of the column, with sizes and configurations coordinated per the structural schedule. Edge distance and bolt spacing adhere to AISC specifications. A second row of bolts is added as required by plan design, and continuity plates may be omitted on one side if the spacing dimension is less than three inches.

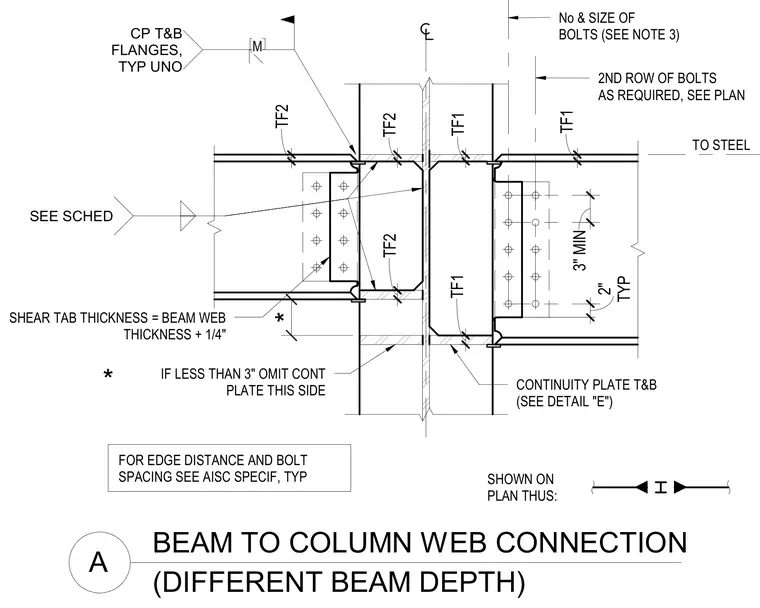

BEAM TO COLUMN WEB CONNECTION A (DIFFERENT BEAM DEPTH) FOR EDGE DISTANCE AND BOLT SPACING SEE AISC SPECIF, TYP SHOWN ON PLAN THUS: No & SIZE OF BOLTS (SEE NOTE 3) 2ND ROW OF BOLTS AS REQUIRED, SEE PLAN TO STEEL CONTINUITY PLATE T&B (SEE DETAIL "E") SHEAR TAB THICKNESS = BEAM WEB THICKNESS + 1/4" IF LESS THAN 3" OMIT CONT PLATE THIS SIDE * SEE SCHED TF2 TF1 3" MIN TYP 2" TF1 TF2 TF1 TF2 CP T&B FLANGES, TYP UNO M *
