A mild reinforced concrete slab closure strip spans between two adjacent concrete slabs, cast a minimum of twenty-eight days after the adjacent slab placement. Keyed construction joints are provided on each side per the typical slab construction detail. Supplemental number four reinforcing bars are placed at twenty-four inches on center where no top reinforcement exists per plan. The lap splice length of the largest top or bottom bar governs the extension into the closure strip, alongside bottom reinforcement sized per plan. Shoring must remain under the slab until the closure strip reaches its twenty-eight-day design strength.

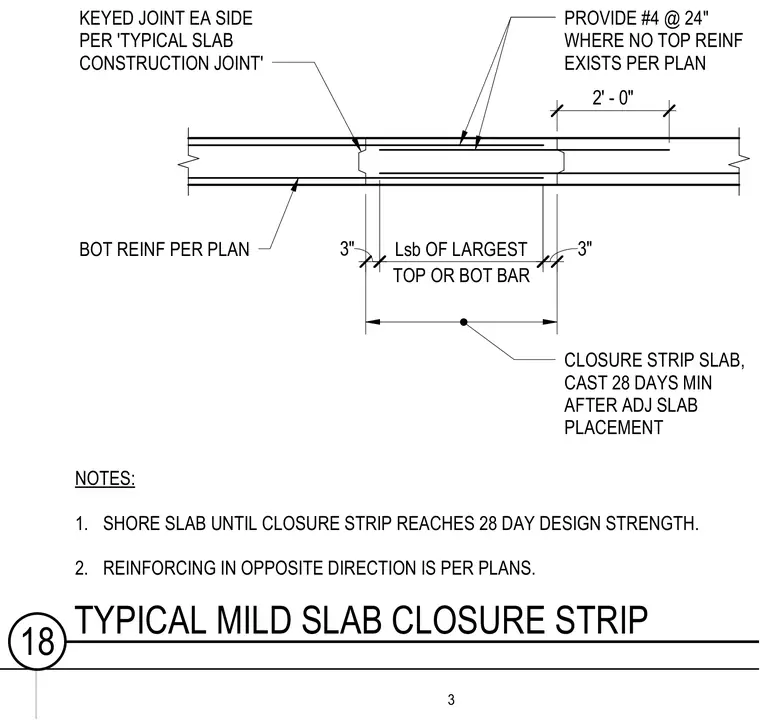

NOTES: 1. SHORE SLAB UNTIL CLOSURE STRIP REACHES 28 DAY DESIGN STRENGTH. 2. REINFORCING IN OPPOSITE DIRECTION IS PER PLANS. KEYED JOINT EA SIDE PER 'TYPICAL SLAB CONSTRUCTION JOINT' PROVIDE #4 @ 24" WHERE NO TOP REINF EXISTS PER PLAN 2' - 0" 35" 3" 3" CLOSURE STRIP SLAB, CAST 28 DAYS MIN AFTER ADJ SLAB PLACEMENT BOT REINF PER PLAN Lsb OF LARGEST TOP OR BOT BAR 3 18 TYPICAL MILD SLAB CLOSURE STRIP
