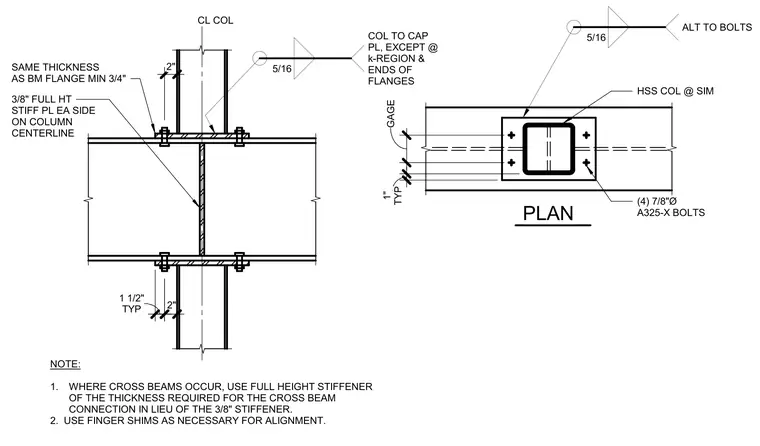

A hollow structural section column frames above and below a steel beam connection. The assembly incorporates a cap plate matching the beam flange thickness with a minimum three-quarter inch dimension, connected via five-sixteenth inch welds excluding the k-region and flange ends. Three-eighth inch full height stiffener plates are positioned on each side along the column centerline. Four seven-eighth inch diameter A325-X bolts secure the hollow structural section column with standard gaging. Finger shims are used as necessary for alignment, and cross beams require full height stiffeners of specified thickness.
CL COL 2" TYP 1 1/2" SAME THICKNESS AS BM FLANGE MIN 3/4" 5/16 COL TO CAP PL, EXCEPT @ k-REGION & ENDS OF FLANGES 3/8" FULL HT STIFF PL EA SIDE ON COLUMN CENTERLINE NOTE: 1. WHERE CROSS BEAMS OCCUR, USE FULL HEIGHT STIFFENER OF THE THICKNESS REQUIRED FOR THE CROSS BEAM CONNECTION IN LIEU OF THE 3/8" STIFFENER. 2. USE FINGER SHIMS AS NECESSARY FOR ALIGNMENT. 2" PLAN HSS COL @ SIM (4) 7/8"Ø A325-X BOLTS GAGE TYP 1" 5/16 ALT TO BOLTS
