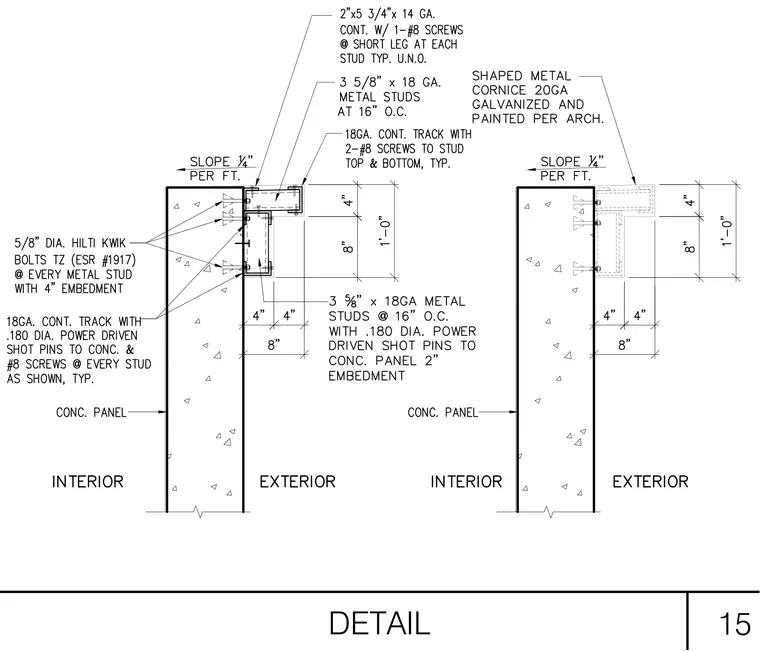

A 2-inch by 5-inch by 3/4-inch 14-gauge continuous runner connects with one number 8 screw at the short leg of each stud typically unless noted otherwise. Three and five-eighths inch by 18-gauge metal studs space at 16 inches on center. An 18-gauge continuous track fastens with two number 8 screws to the stud at top and bottom typically. Five-eighths inch diameter Hilti Kwik Bolts TZ (ESR number 1917) secure to every metal stud with 4 inches of embedment. An 18-gauge continuous track uses 0.180-inch diameter power-driven shot pins to concrete and number 8 screws at every stud as shown typically. A shaped metal cornice 20-gauge galvanized and painted per architect connects at the exterior.
